Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Ensure that the head restraint retractor assembly is in an unloaded or released position after you remove the head restraint from the rear seat back. Accidental deployment of the head restraint retractor assembly may cause personal injury.
  1. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  2. Remove the 3 bolts that retain the head restraint retractor assembly to the seat back frame.

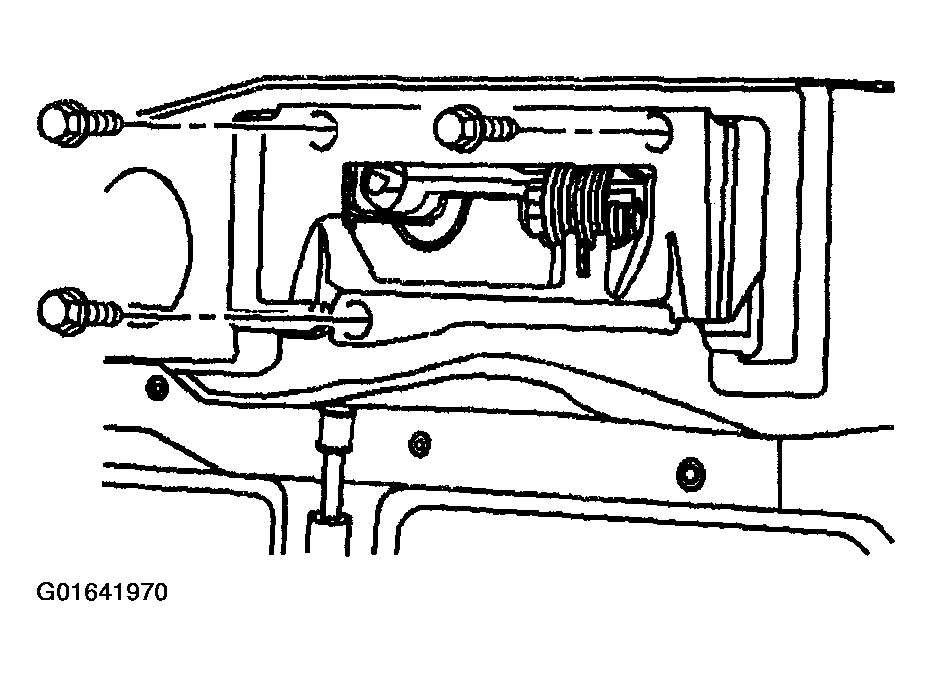

    3. Fig 1: 3 Bolts Of Head Restraint Retractor Assembly
    G01641970Courtesy of GENERAL MOTORS CORP.
  3. Partially remove the head restraint retractor assembly from the frame.

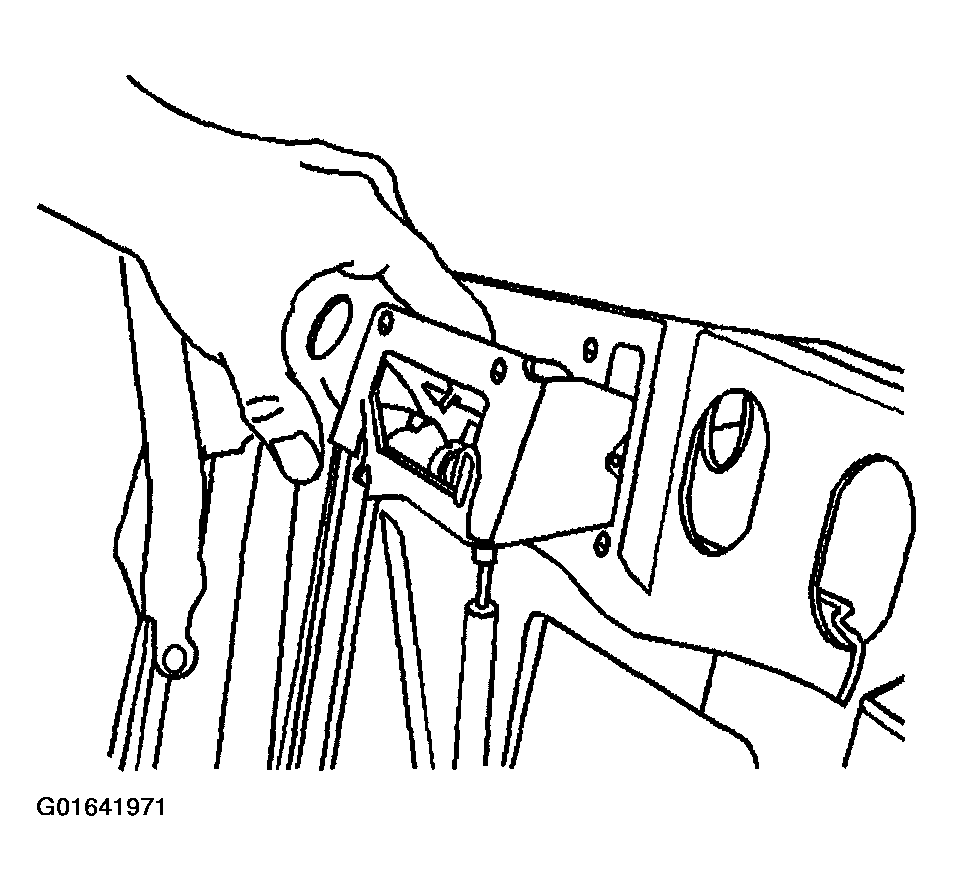

    4. Fig 2: Head Restraint Retractor Assembly From Frame
    G01641971Courtesy of GENERAL MOTORS CORP.
  4. Remove the release cable by sliding the cable retainer over to the large access hole and removing the cable from the head restraint retractor assembly.
  5. Remove the retractor assembly from the seat back frame.
    6. Fig 3: Release Cable
    G01641972Courtesy of GENERAL MOTORS CORP.
