Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the head restraint retractor assembly to the seat back.

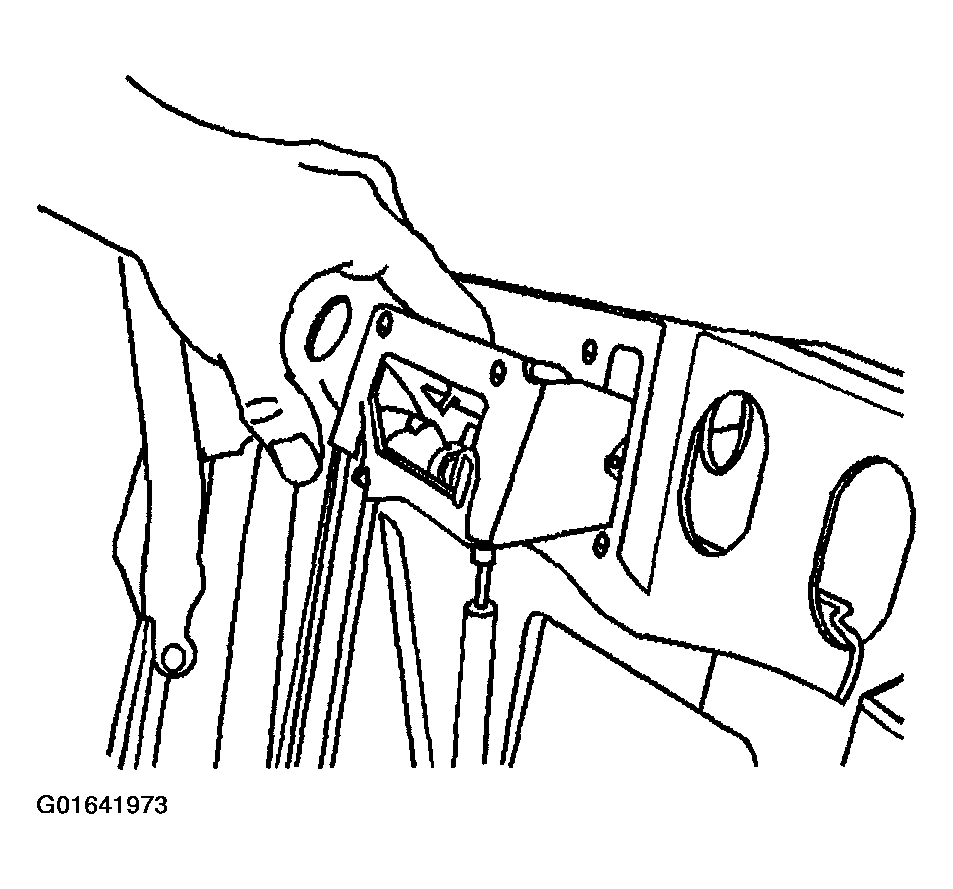

Fig 1: Head Restraint Retractor Assembly

Courtesy of GENERAL MOTORS CORP.

Install the release cable through the head restraint retractor assembly access hole and sliding the cable retainer into position.

Fig 2: Release Cable
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the 3 bolts that retain the head restraint retractor assembly to the seat back frame.
Tighten

Tighten the head restraint retractor bolts to 10 N.m (88 lb in).

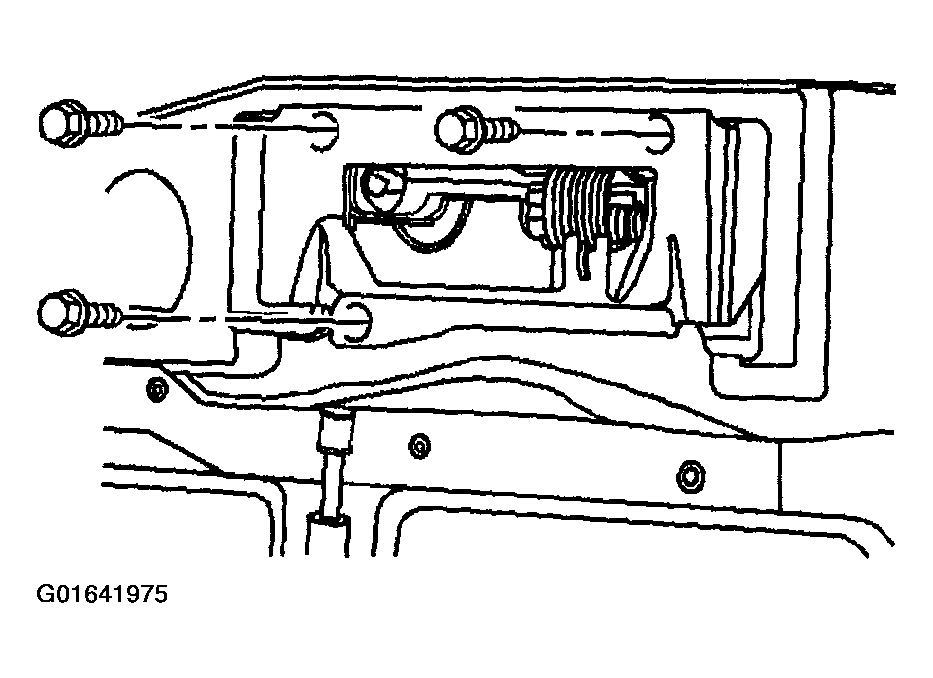

Fig 3: 3 Bolts Of Head Restraint Retractor Assembly

Courtesy of GENERAL MOTORS CORP.

Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
