Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the head restraint to the full up position.
  2. Adjust the seat cushion just below the top of the seat back in order to gain access to the retaining clip on each head restraint post.
  3. Remove the retaining clip from each head restraint post.

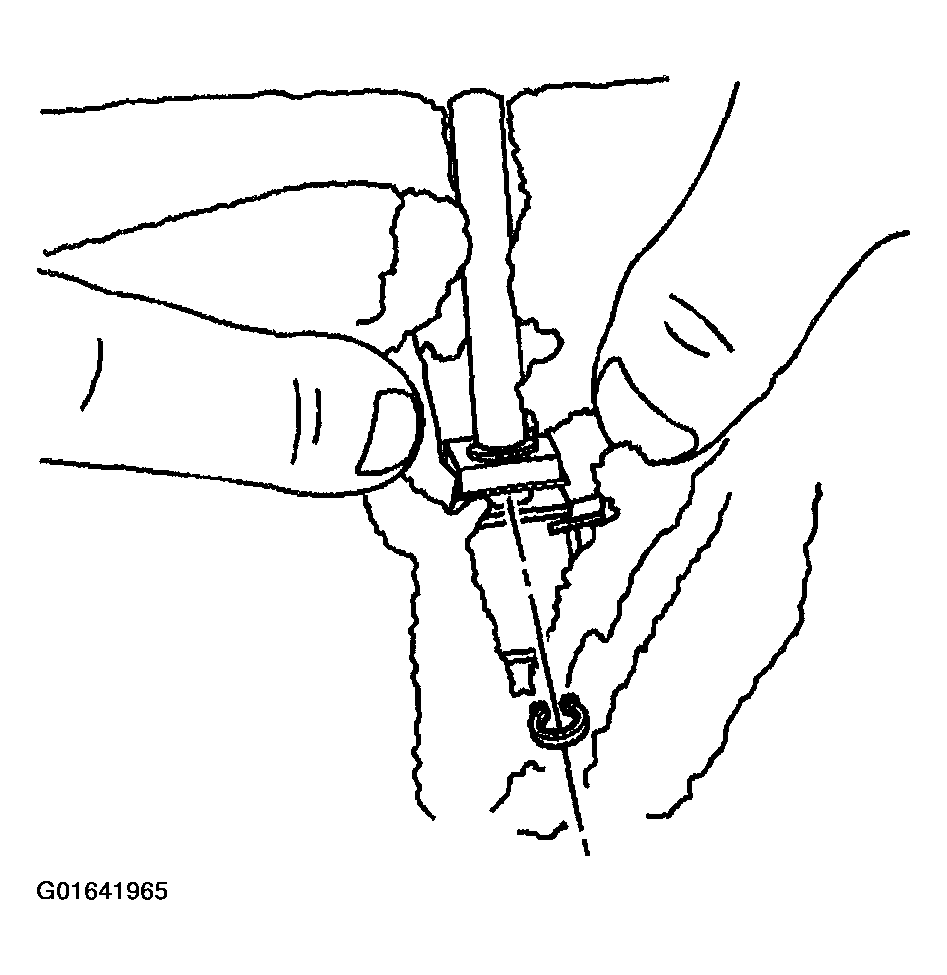

    4. Fig 1: Retaining Clip From Head Restraint Post
    G01641965Courtesy of GENERAL MOTORS CORP.
  4. Remove the head restraint from the seat back.
