Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining clips to the head restraint retractor.

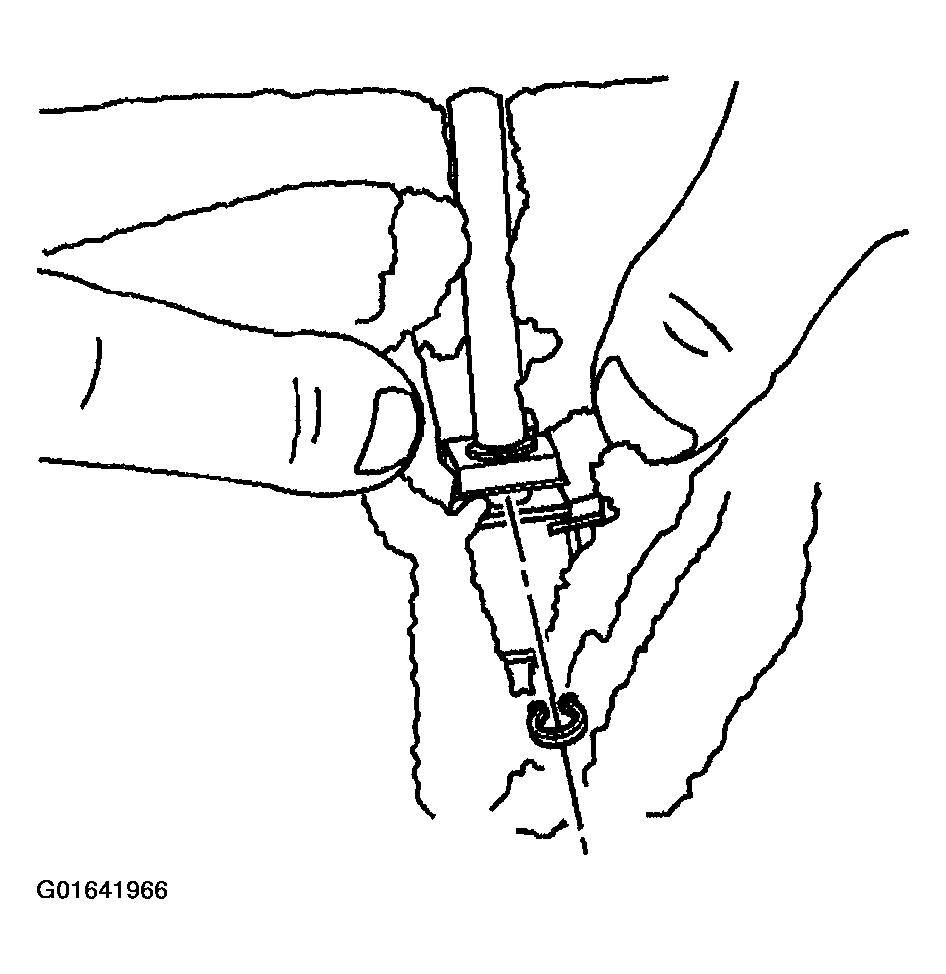

    2. Fig 1: Retaining Clips To Head Restraint Retractor
    G01641966Courtesy of GENERAL MOTORS CORP.
  2. Verify that the retaining clips are fully seated.
  3. Install the rear seat head restraint posts to the head restraint retractor, verifying that the notches in the head restraint posts are indexed toward the back of the seat.
    4. Fig 2: Rear Seat Head Restraint Posts To Head Restraint Retractor
    G01641967Courtesy of GENERAL MOTORS CORP.
  4. Lower the head restraint to the full down position.
