Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  2. Remove the seat back cover and pad high enough to expose the head restraint guides. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  3. Remove the head restraint guides by squeezing the retaining tabs (1) located at the bottom of the guides together.

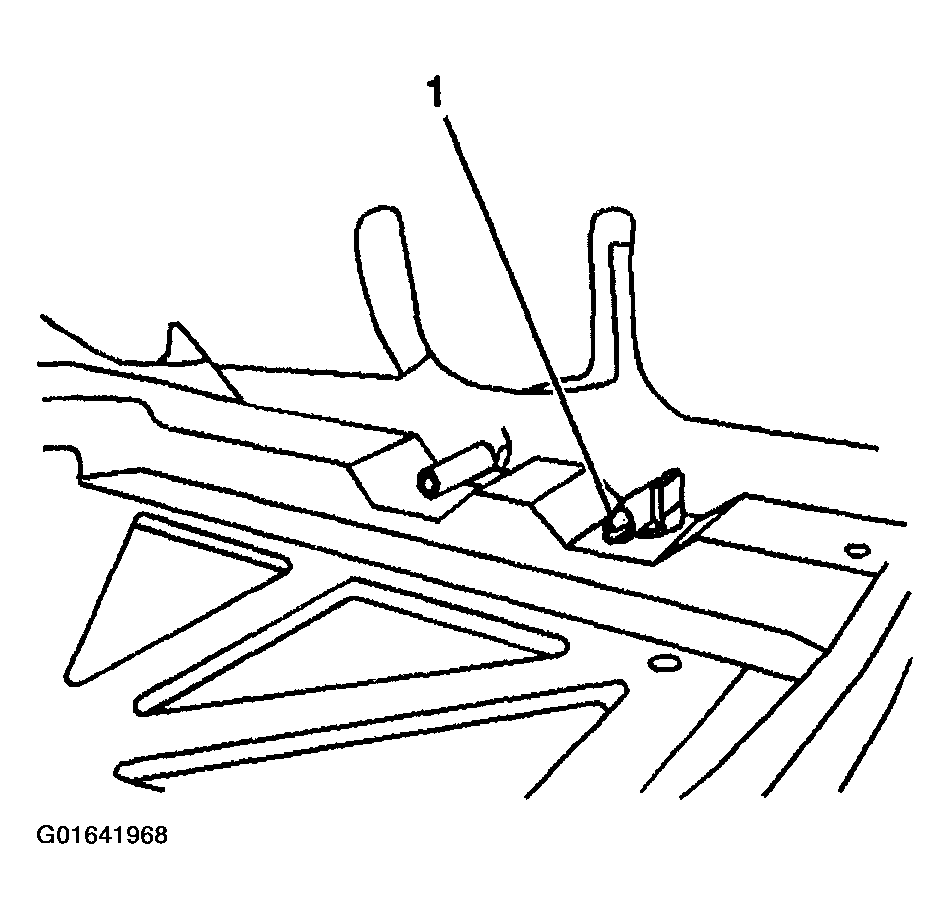

    4. Fig 1: Head Restraint Guides
    G01641968Courtesy of GENERAL MOTORS CORP.
