Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint guides by pushing the guides into the frame until the retaining tabs (1) lock the guide in place.

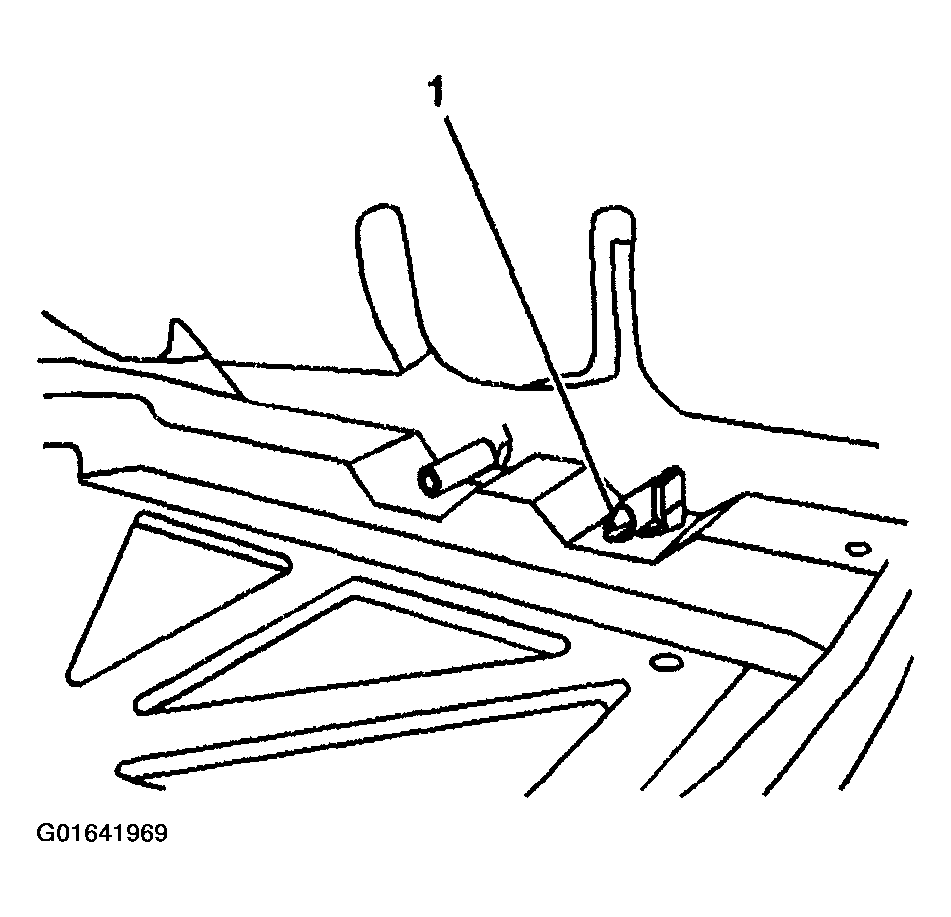

    2. Fig 1: Head Restraint Guides
    G01641969Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back cover and pad to the seat back. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL)  .
  3. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
