Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  3. Pull the seat back cover and the seat back pad up high enough to expose the head restraint guides. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Squeeze the retaining tabs located at the bottom of the guides together in order to remove the guides from the seat frame.
  5. Remove the guides from the seat back frame.

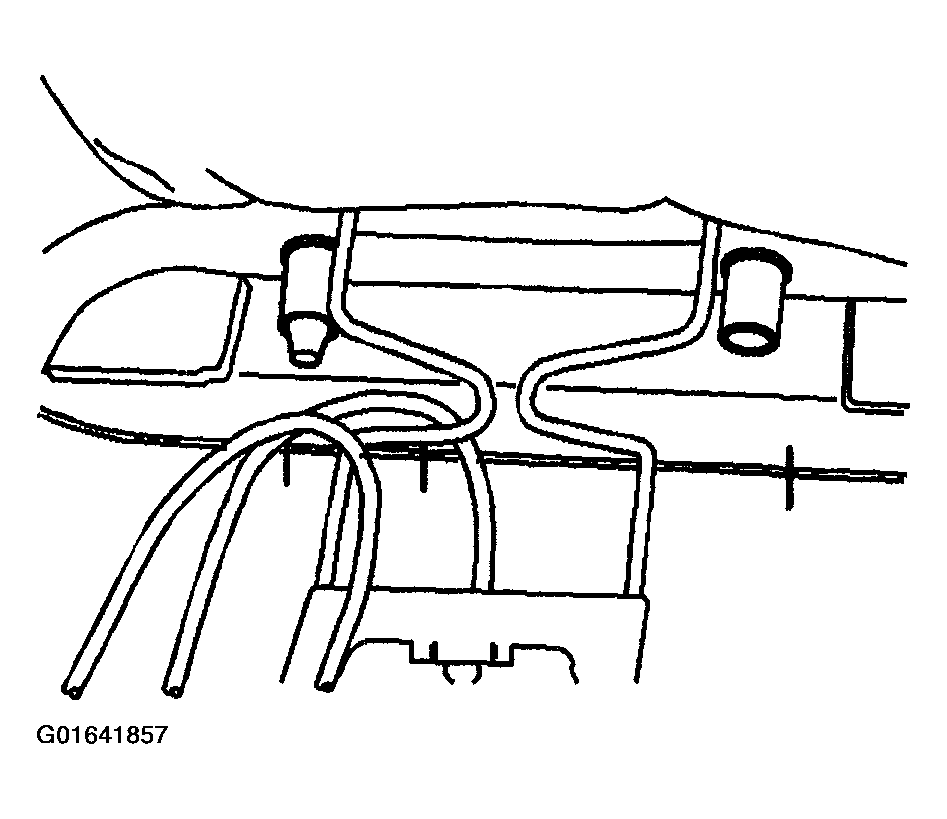

    6. Fig 1: Guides From Seat Back Frame
    G01641857Courtesy of GENERAL MOTORS CORP.
