Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint guides by pushing them through the cover into the frame until the locking tabs snap into place. The guide with the locking tab (1) installs on the right hand side of the seat.

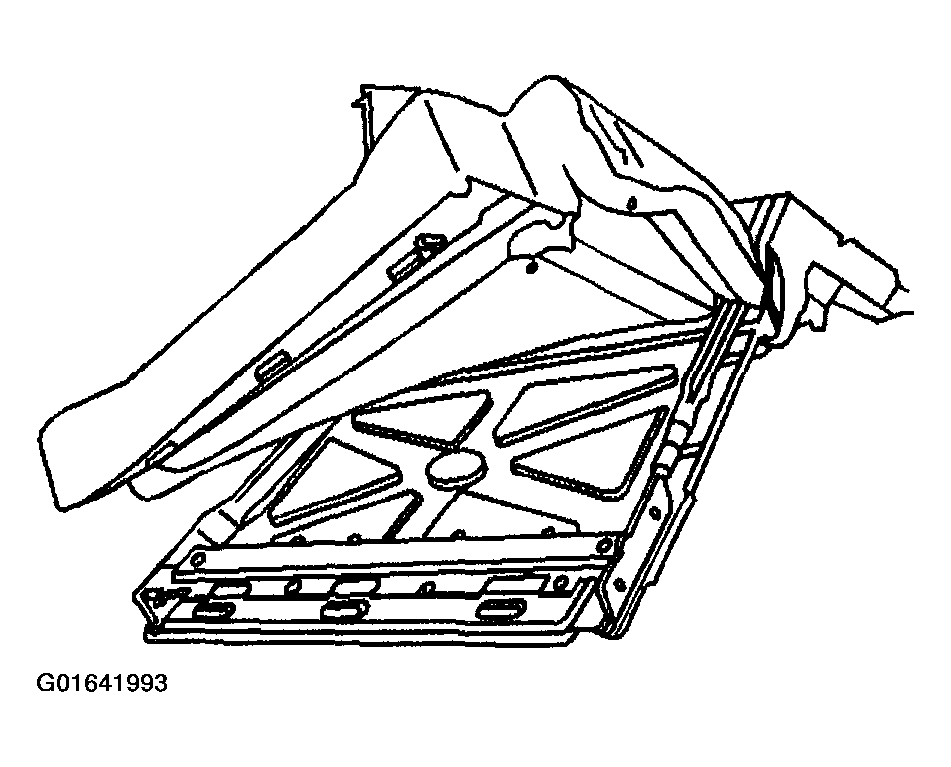

    2. Fig 1: Seat Back Cover And Pad
    G01641993Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back cover and pad on the seat back frame. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 2  .
  3. Install the head restraint assembly. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
