Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  2. Release the J-strips on the bottom of the head restraint cover.

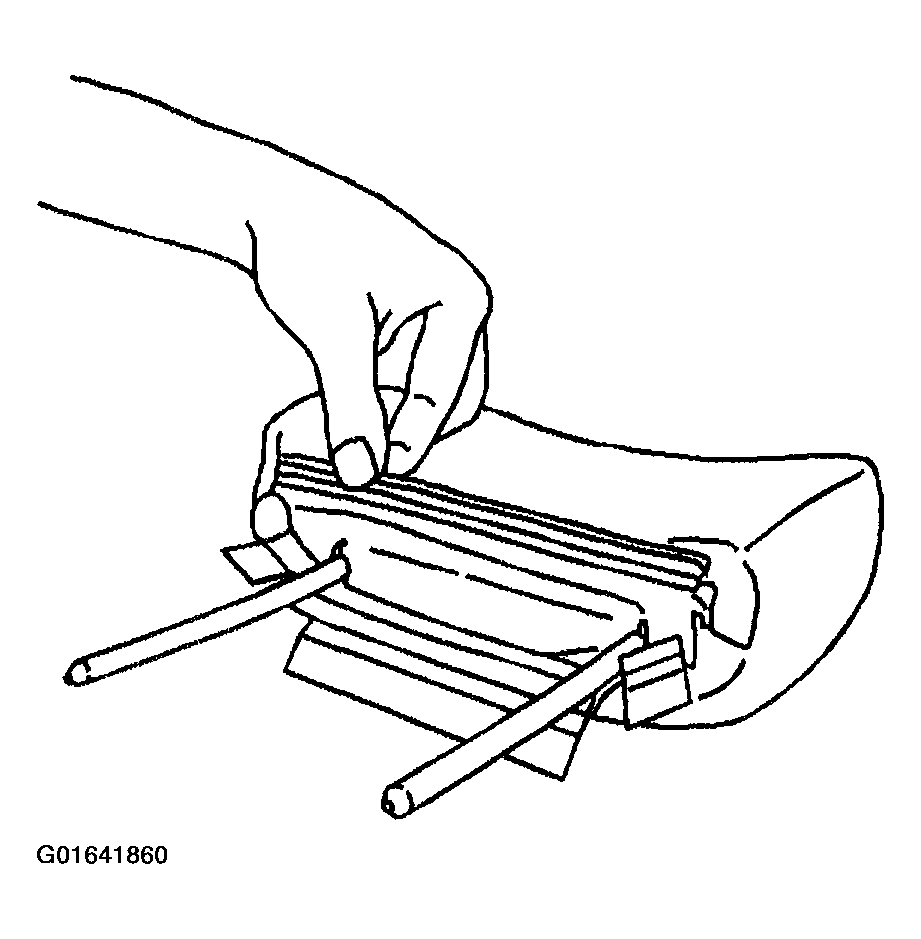

    3. Fig 1: J-Strips On Bottom Of Head Restraint Cover
    G01641860Courtesy of GENERAL MOTORS CORP.
  3. Remove the cover from the head restraint.
    4. Fig 2: Cover From Head Restraint
    G01641861Courtesy of GENERAL MOTORS CORP.
