Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover to the head restraint.
    2. Fig 1: Cover To Head Restraint
    G01641862Courtesy of GENERAL MOTORS CORP.
  2. Install the J-strips on the bottom of the head restraint cover.

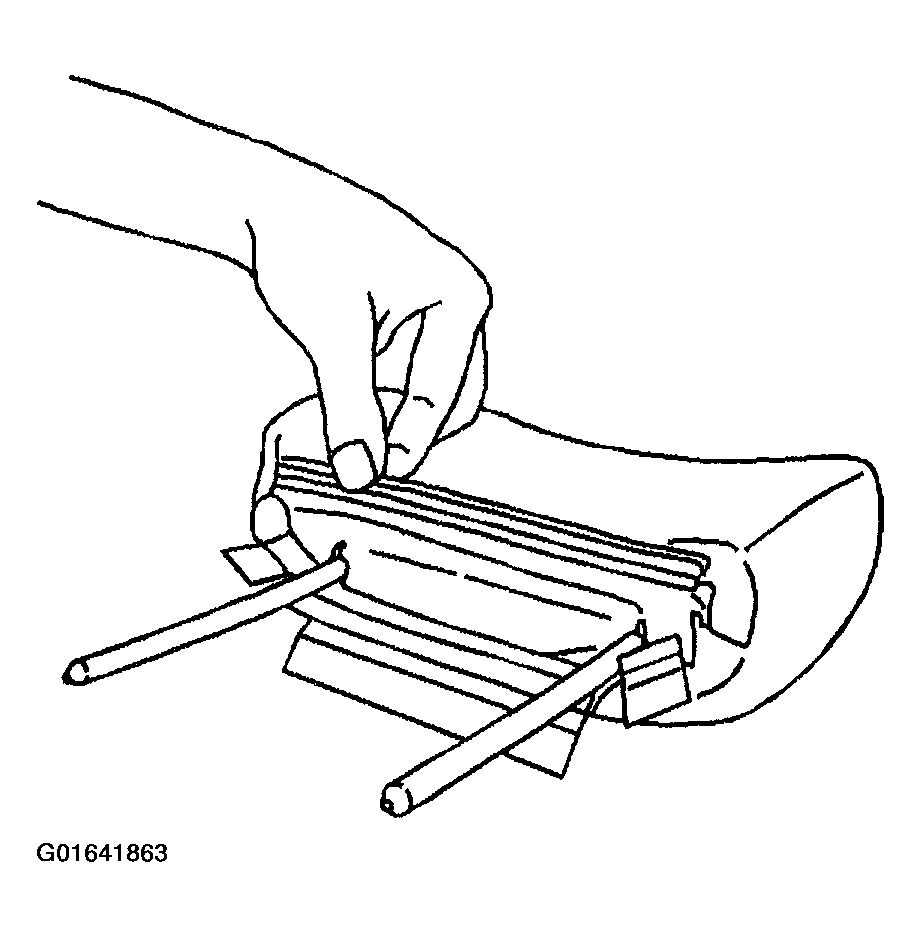

    3. Fig 2: J-Strips On Bottom Of Head Restraint Cover
    G01641863Courtesy of GENERAL MOTORS CORP.
  3. Install the front seat head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
