B2425 or B2430

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

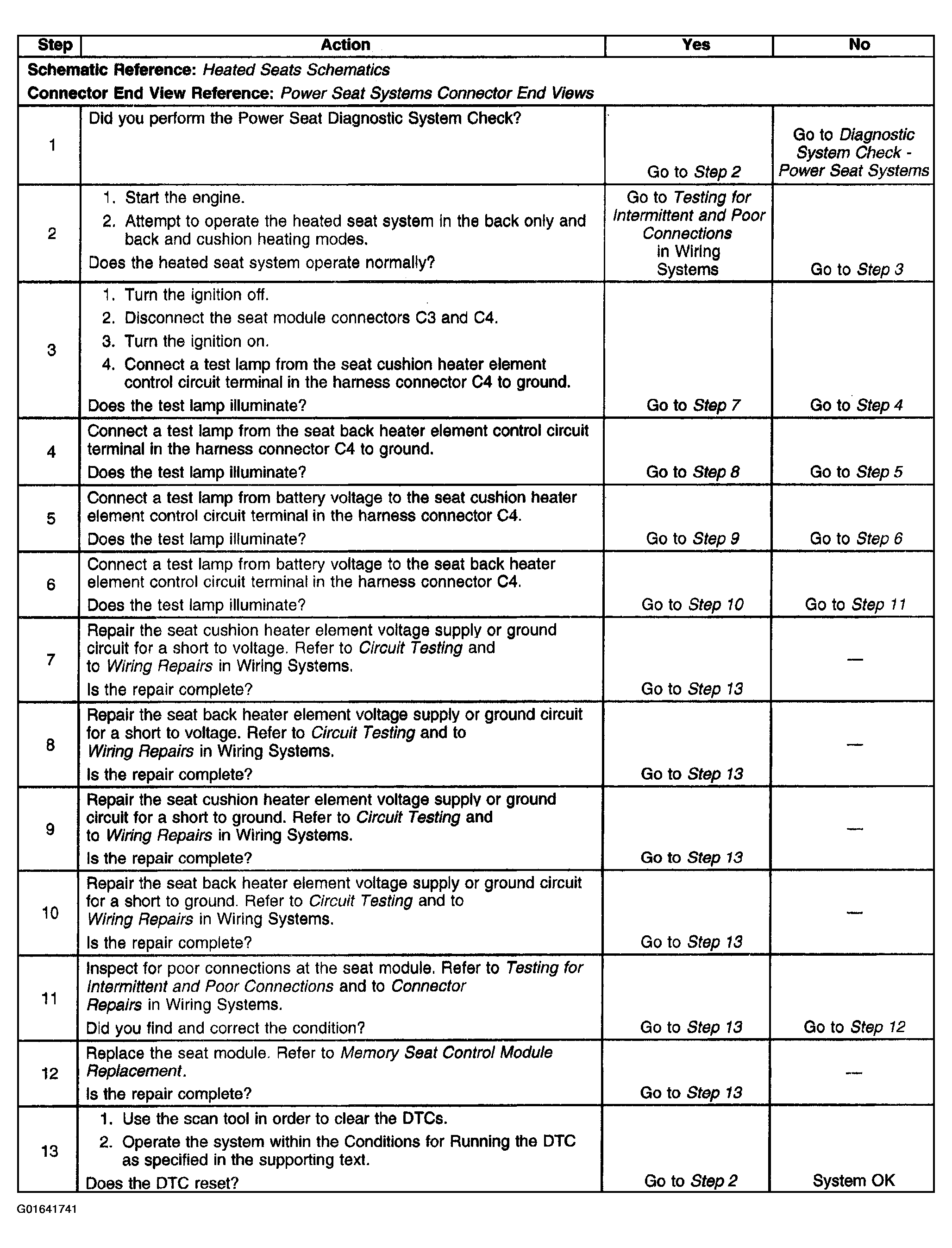

Fig 1: DTC B2425 Or B2430 Procedure
G01641741Courtesy of GENERAL MOTORS CORP.
