Seat Lumbar Motors and Position Sensors Assembly - Front Passenger

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

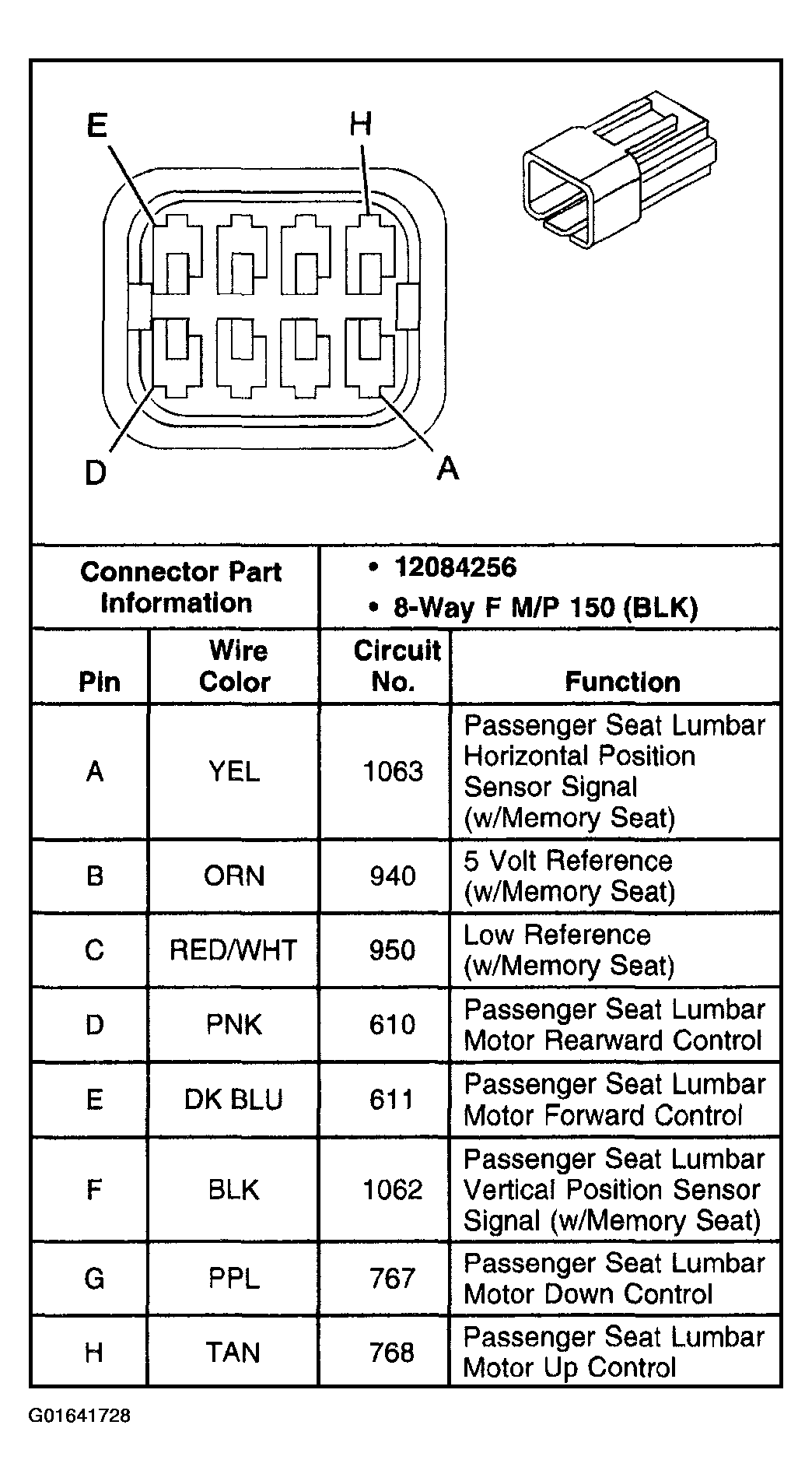

Fig 1: Identifying Seat Lumbar Motors And Position Sensors Assembly - Front Passenger Connector Terminals End View
G01641728Courtesy of GENERAL MOTORS CORP.
