Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The sunroof must be in the fully closed position prior to removing the sunroof window.
  1. Open the sunshade panel.
  2. Remove the 4 screws (2) that retain the sunroof window (1) to the sunroof module assembly.

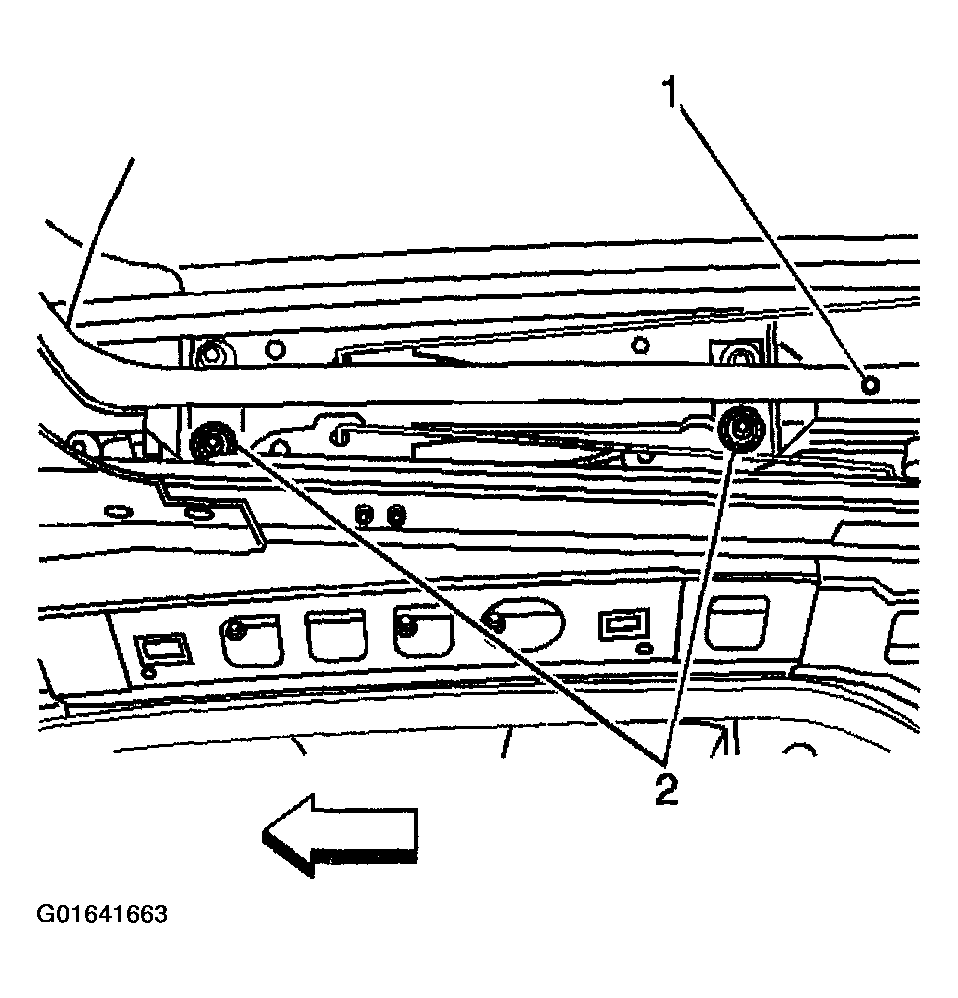

    3. Fig 1: Identifying Sunroof Window Screws
    G01641663Courtesy of GENERAL MOTORS CORP.
  3. Remove the sunroof window from the top of the vehicle.
