Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console in order to access the sunroof switch. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT , or to OVERHEAD CONSOLE REPLACEMENT - REAR in Interior Trim.
Disconnect the electrical connector from the sunroof switch.
With a flat bladed tool carefully release the tabs that retain the sunroof switch to the overhead console.

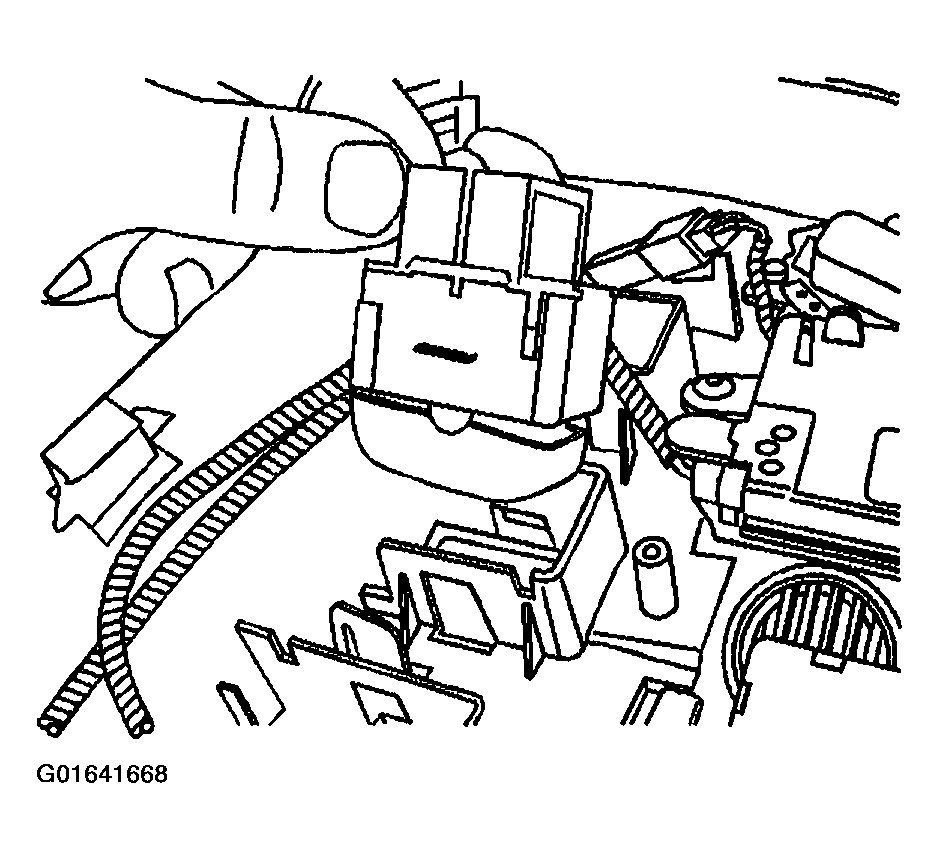

Fig 1: Releasing Tabs That Retain Sunroof Switch With Flat Bladed Tool

Courtesy of GENERAL MOTORS CORP.

Remove the sunroof switch from the overhead console.

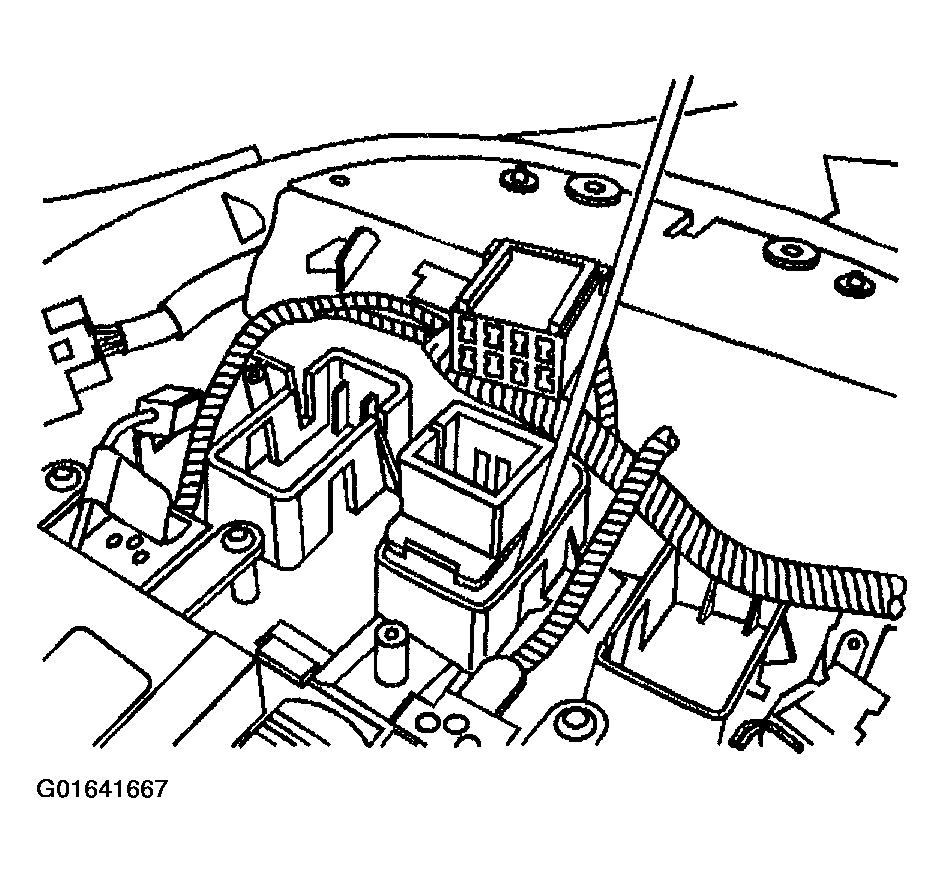

Fig 2: Removing Sunroof Switch From Overhead Console

Courtesy of GENERAL MOTORS CORP.
