Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the sunroof switch alignment tabs to the slots in the console.
Install the sunroof switch into the console, ensuring that the retaining tabs are fully seated.

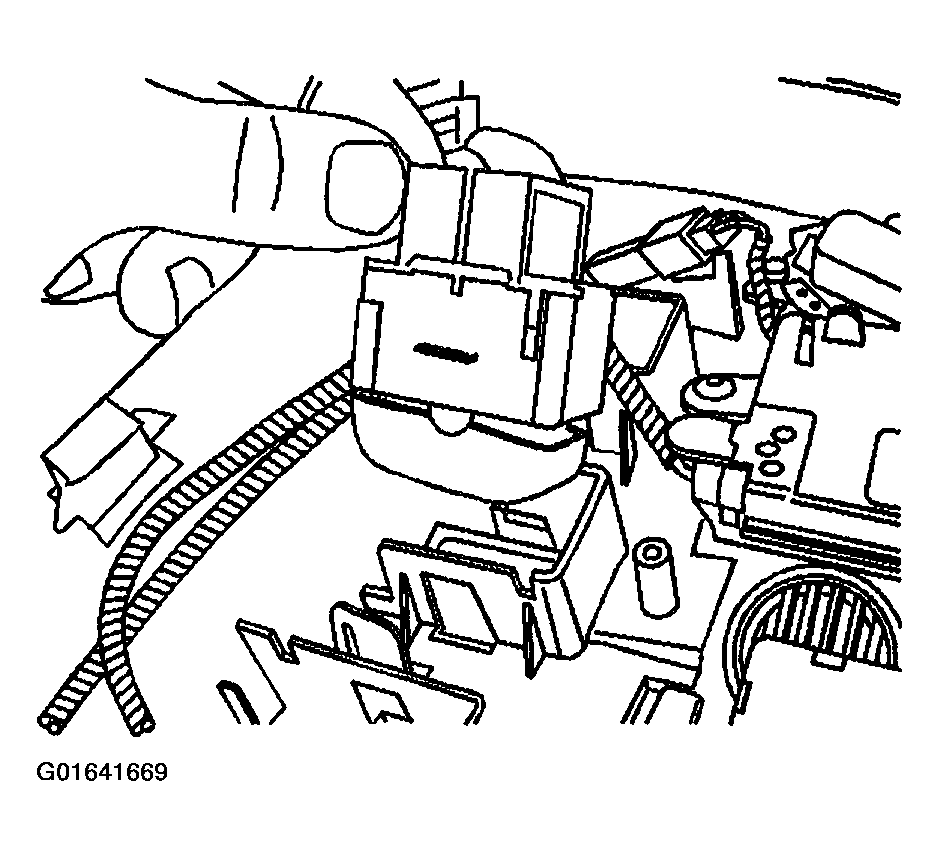

Fig 1: Installing Sunroof Switch Into Console

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the sunroof switch.
Install the overhead console to the roof. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT , or to OVERHEAD CONSOLE REPLACEMENT - REAR in Interior Trim.
