Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT   .
  2. Remove the screws (1) that retain the water trough to the sunroof assembly.

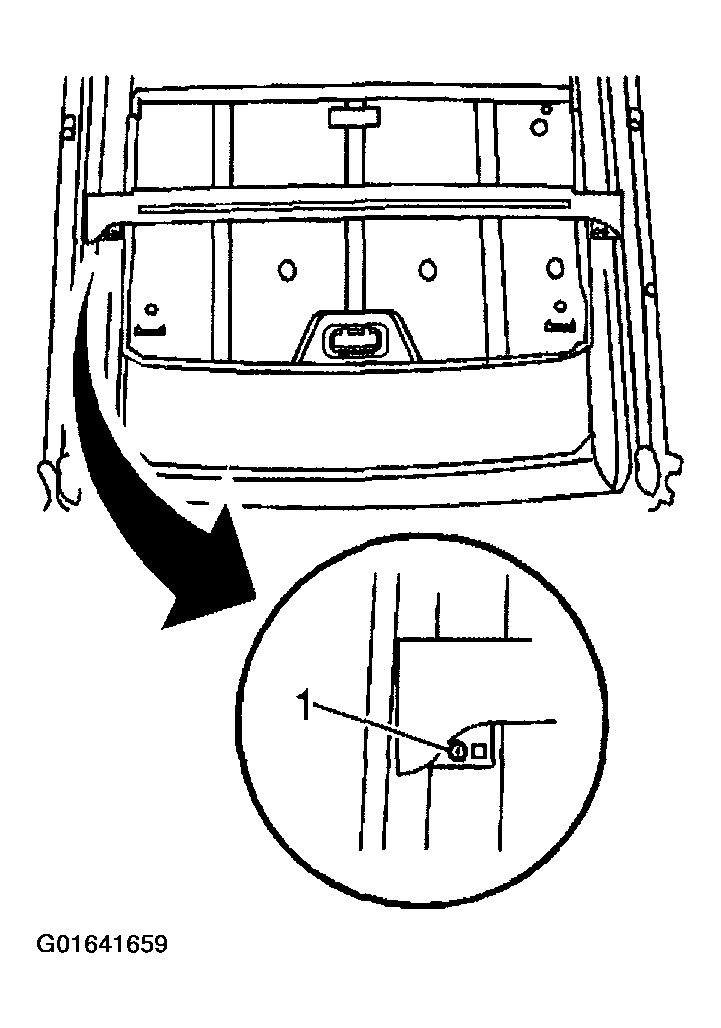

    3. Fig 1: Removing Screws
    G01641659Courtesy of GENERAL MOTORS CORP.
  3. Remove the water trough from the sunroof assembly from the top of the vehicle.
    IMPORTANT: The sunshade must be removed from the top of the vehicle.
  4. Slide the sunshade forward.
  5. Flex the center of the sunshade (2) upward while simultaneously sliding the panel sideways to release the retaining tabs (3) from the track slot (1).

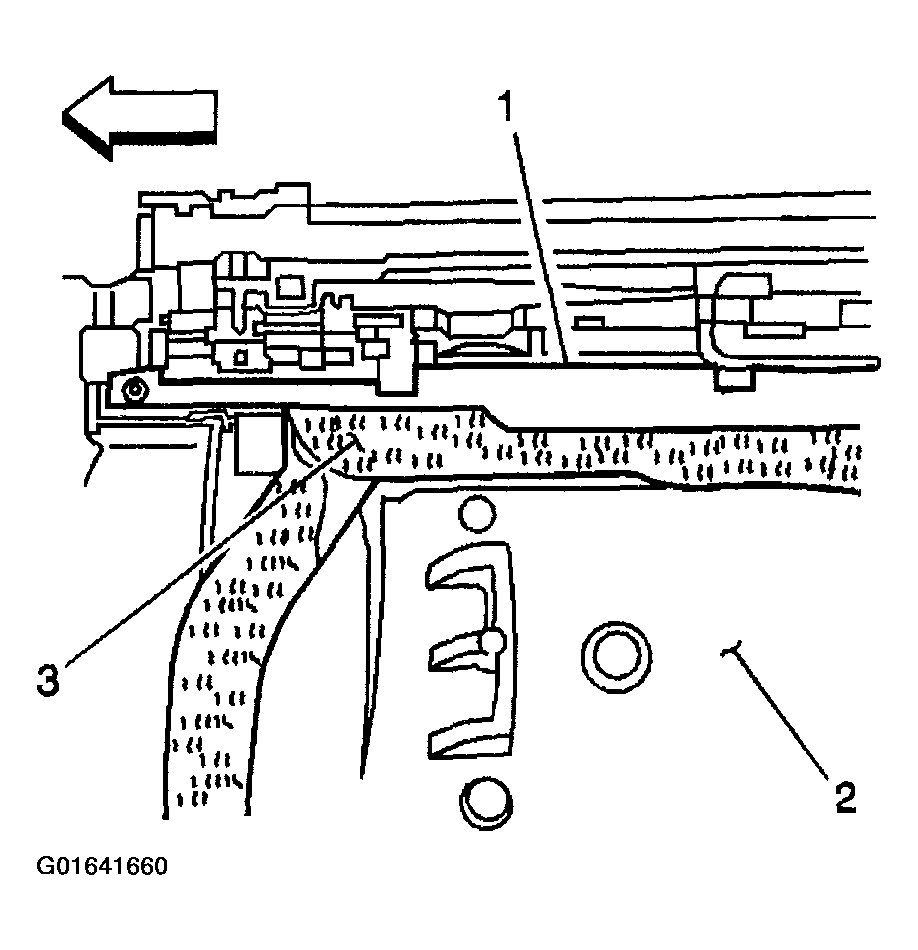

    6. Fig 2: Releasing Retaining Tabs From Track Slot
    G01641660Courtesy of GENERAL MOTORS CORP.
  6. Remove the sunshade from the top of the vehicle.
