Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner. Refer to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
  2. Remove the tie strap that retains the white connector to the drive cable tube sunroof motor wiring harness.
  3. Disconnect the sunroof motor/actuator wiring harness electrical connector.
  4. Remove the screws (1) which retain the sunroof motor/actuator (2) to the sunroof module assembly.

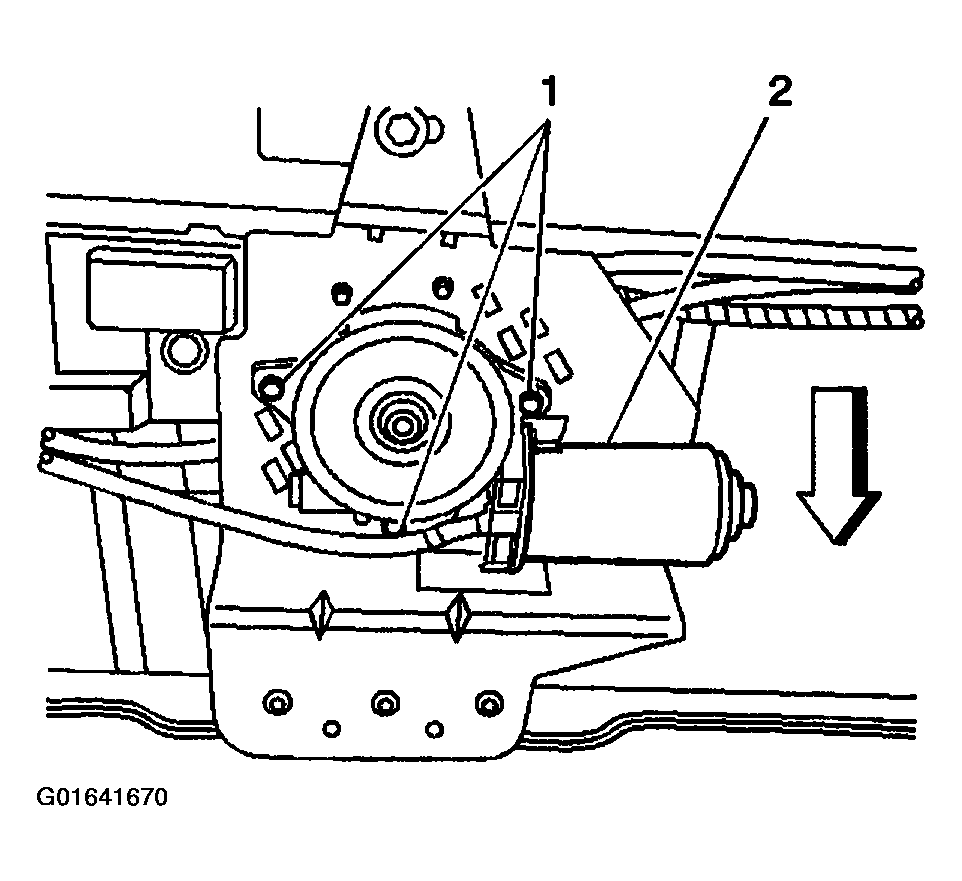

    5. Fig 1: Removing Screws Which Retain Sunroof Motor/Actuator
    G01641670Courtesy of GENERAL MOTORS CORP.
  5. Remove the sunroof motor/actuator (2) from the sunroof module assembly.
