Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the mechanic's wire to the drain hose.
  2. Route the end of the drain hose through side cowl panel until the paint mark is visible, right or left side, as needed.
  3. Install the 2 hose clips securing the drain hose to the side door frame, right or left side, as needed.

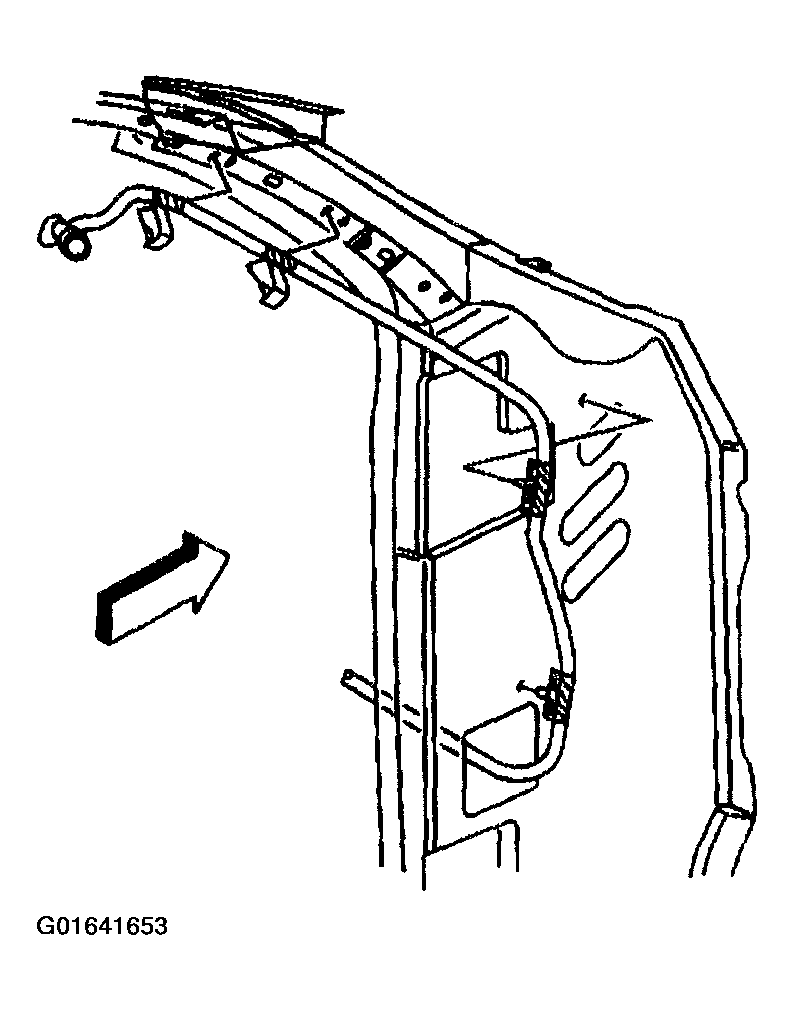

    4. Fig 1: Installing 2 Hose Clips Securing Drain Hose
    G01641653Courtesy of GENERAL MOTORS CORP.
  4. Install the 2 hose clips securing the drain hose to the cowl panel, right or left side, as needed.
  5. Connect the front sunroof drain hose to the sunroof module front spigot, right or left side, as needed.
    6. Fig 2: Connecting Front Sunroof Drain Hose
    G01641654Courtesy of GENERAL MOTORS CORP.
  6. Install the headliner. Refer to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
