Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, carefully remove the finish covers (3) from the luggage carrier side rails (2).
  2. Unlock the cross rails (4) by releasing the locking tab (1) on the end of each cross rail.
  3. Slide the cross rails forward and remove from the side rails.
  4. Remove the bolts that retain the side rails to the roof panel.
  5. Remove the side rails from the roof panel.

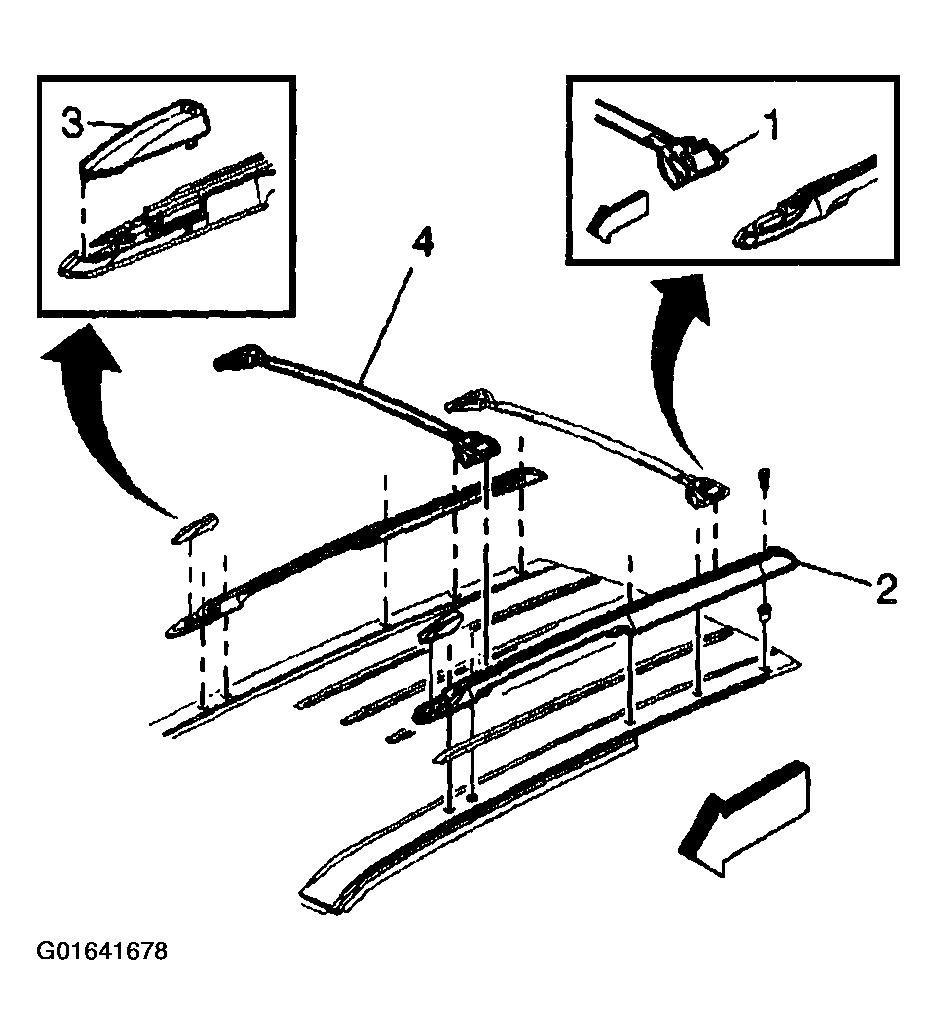

    6. Fig 1: Removing Bolts Side Rails To Roof Panel
    G01641678Courtesy of GENERAL MOTORS CORP.
