Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the side rails (2) to the roof panel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

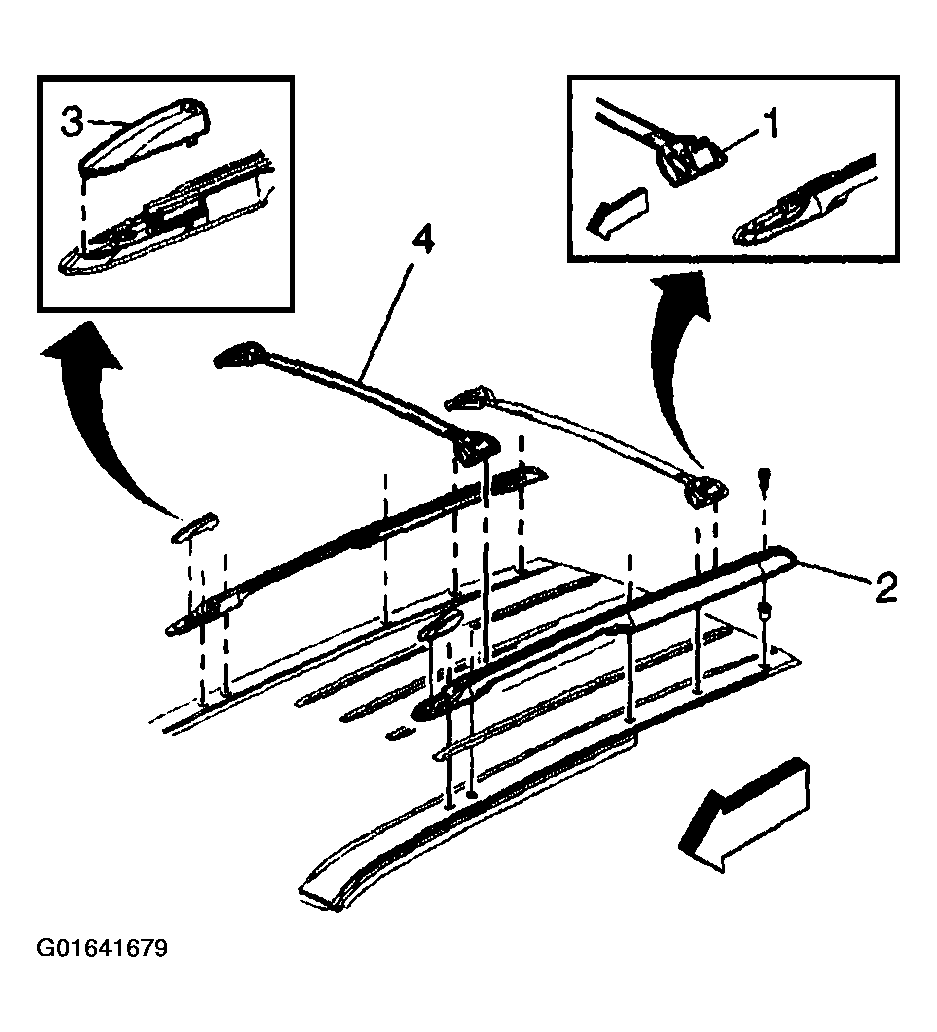

    2. Fig 1: Installing Bolts Side Rails To Roof Panel
    G01641679Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts which retain the side rails to the roof panel, starting with the rearmost bolt first on each side.

    Tighten

    Tighten the luggage carrier side rail bolts to 5 N.m (44 lb in).

    IMPORTANT: Ensure that the loops on the cross rails are indexed toward the front of the vehicle.
  3. Install the cross rails (4) to the side rails.
  4. Lock the cross rails to the slide rails.
  5. Install and secure the finish covers (3) to the side rails.
