Power Sunroof Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Diagnostics Chart - Power Sunroof Inoperative Procedure (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

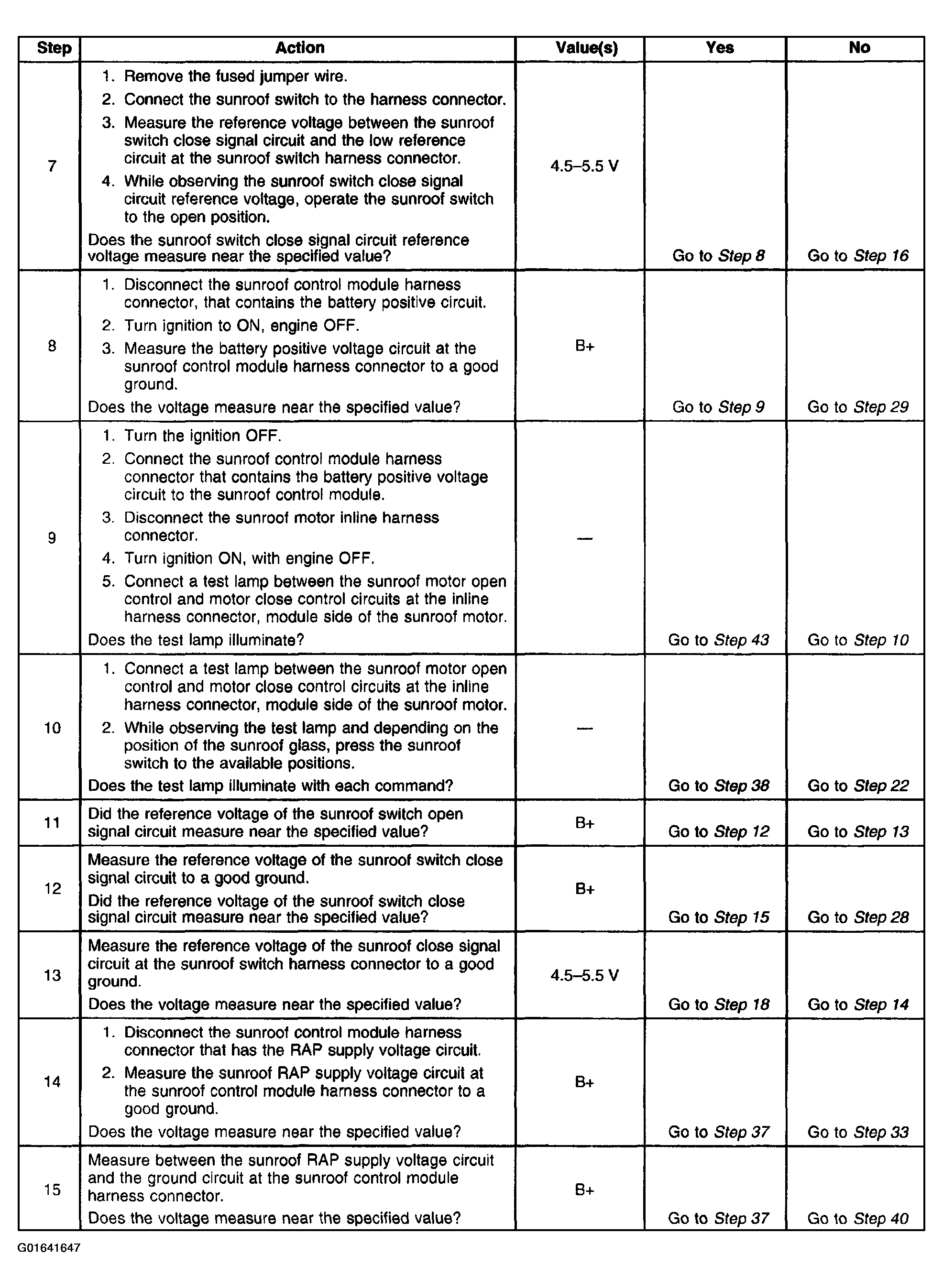

Fig 2: Diagnostics Chart - Power Sunroof Inoperative Procedure (Steps 7-15)

Courtesy of GENERAL MOTORS CORP.

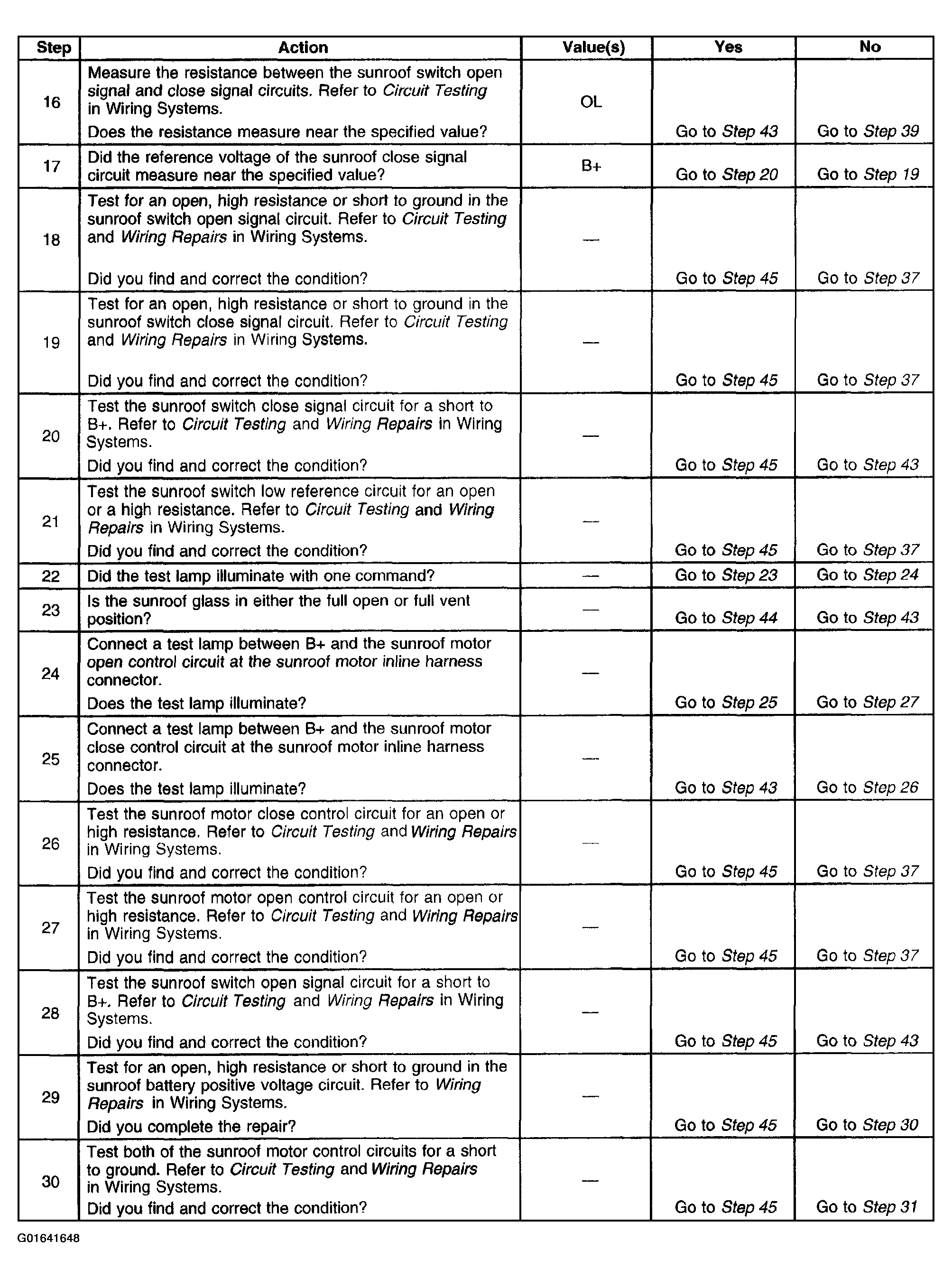

Fig 3: Diagnostics Chart - Power Sunroof Inoperative Procedure (Steps 16-30)

Courtesy of GENERAL MOTORS CORP.

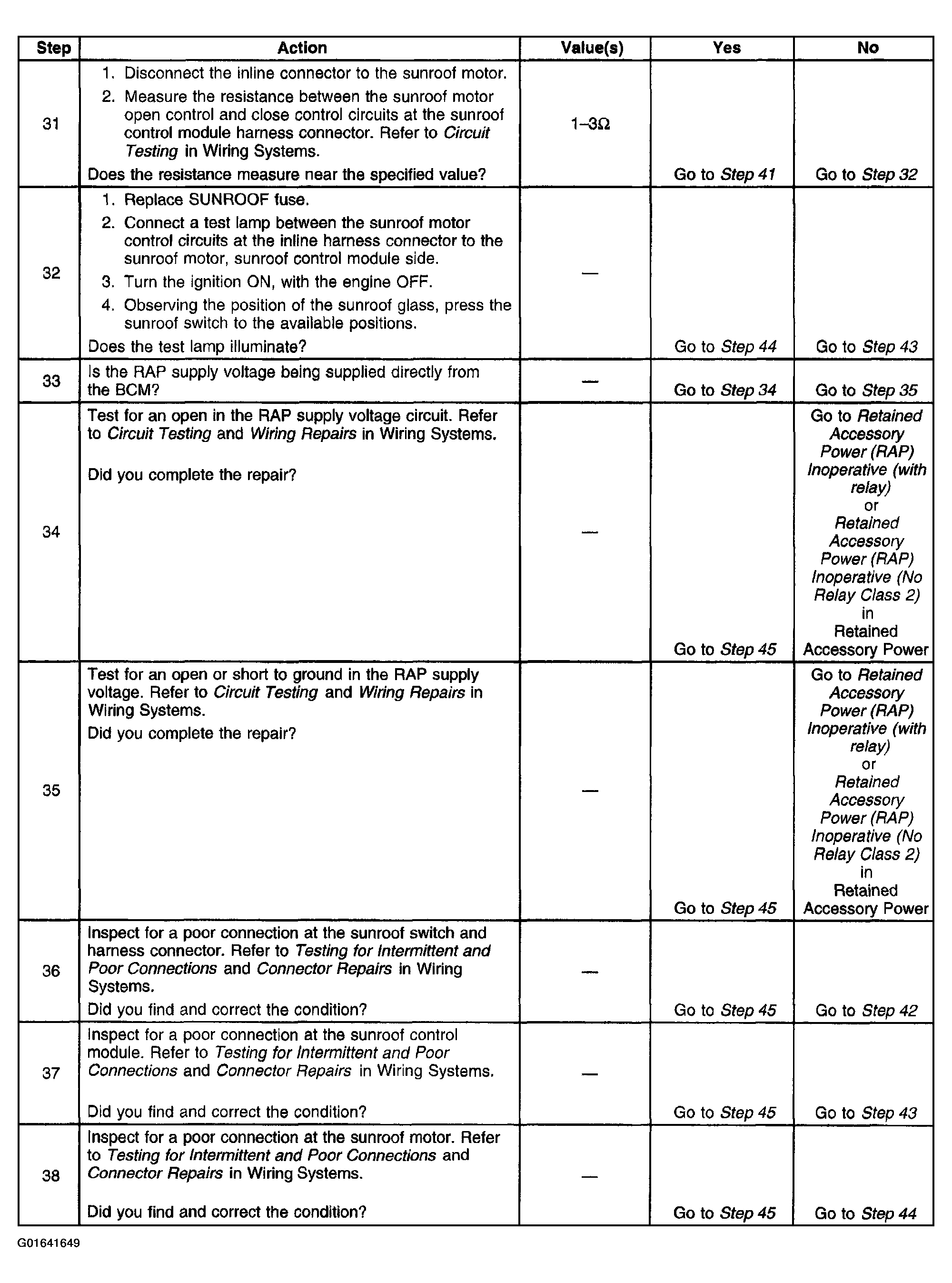

Fig 4: Diagnostics Chart - Power Sunroof Inoperative Procedure (Steps 31-38)

Courtesy of GENERAL MOTORS CORP.

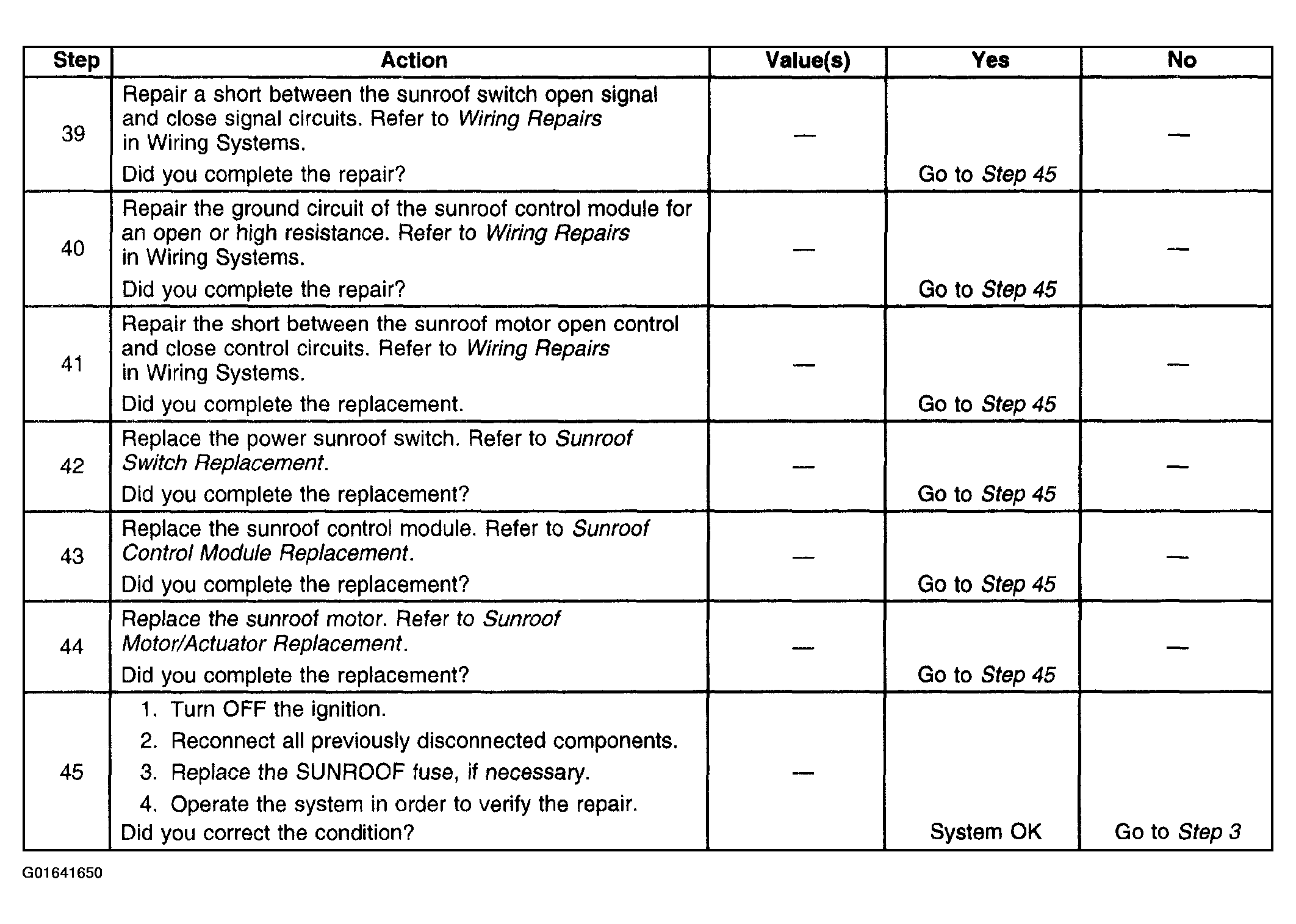

Fig 5: Diagnostics Chart - Power Sunroof Inoperative Procedure (Steps 39-45)

Courtesy of GENERAL MOTORS CORP.
