Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR   .
  3. Remove the speaker. Refer to SPEAKER REPLACEMENT - REAR DOOR  in Entertainment.
  4. Disconnect the regulator motor electrical connector.
  5. Disconnect the door latch assembly electrical connector.
  6. Remove the second pillar trim. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  in Interior Trim.
  7. From the inside of the door, release the rubber conduit retainer from the door by releasing the retaining tabs.

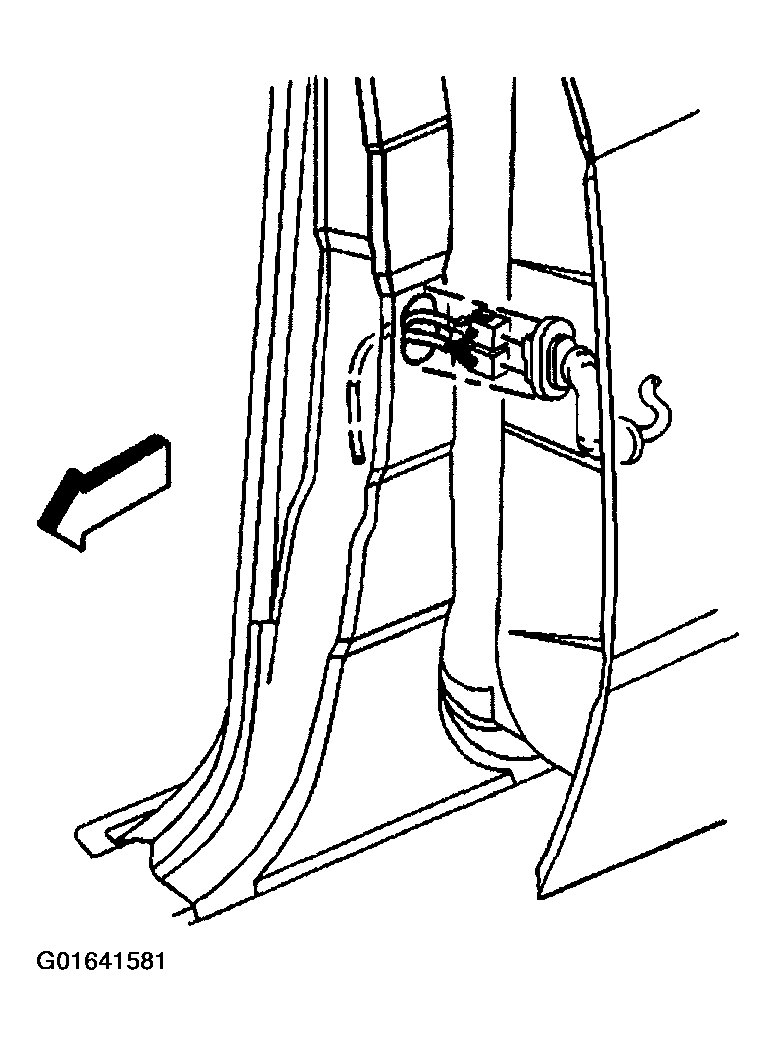

    8. Fig 1: Releasing Rubber Conduit Retainer From Rear Door By Releasing Retaining Tabs
    G01641581Courtesy of GENERAL MOTORS CORP.
  8. Using the pillar access hole, remove the door harness connector retainer from the second pillar by releasing the retaining tabs.
  9. Disconnect the 6-way and the 8-way electrical connectors from the door wire harness connector.
  10. Note the routing of the wire harness and release the wire harness attachments from the door.

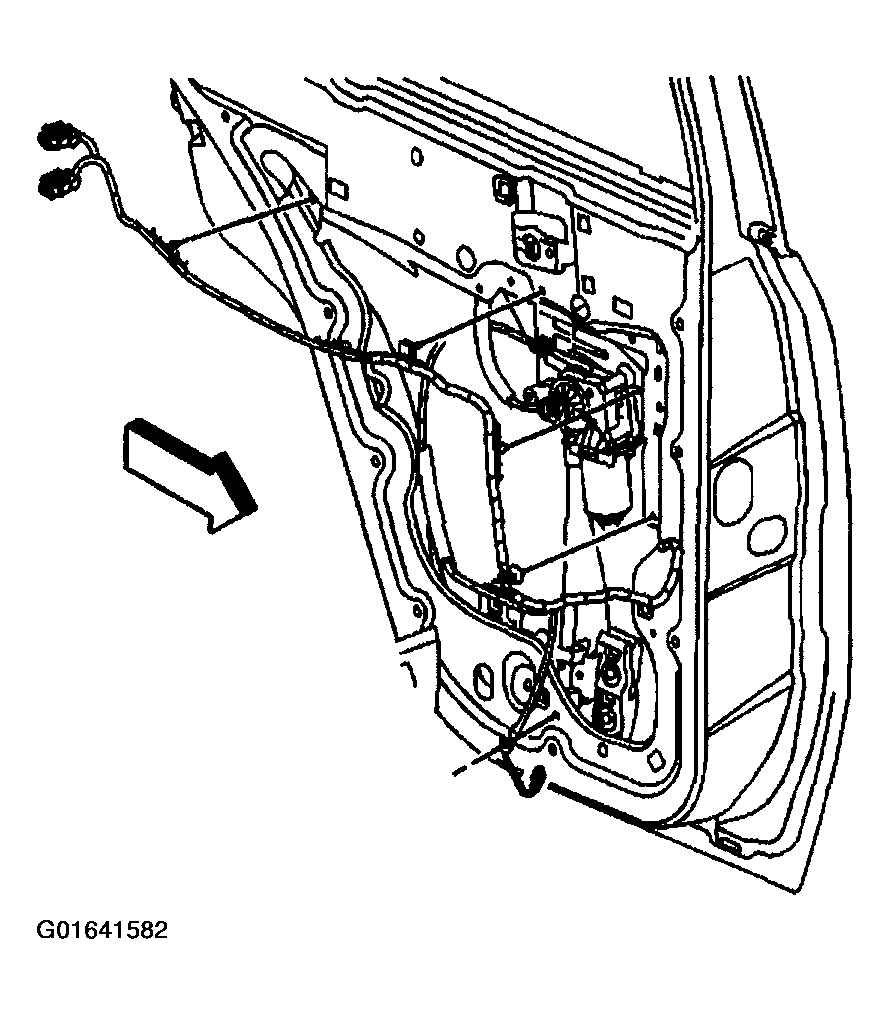

    11. Fig 2: Noting Routing Of Wire Harness And Releasing Wire Harness Attachments From Rear Door
    G01641582Courtesy of GENERAL MOTORS CORP.
  11. Remove the wire harness from the door.
