Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip/run channel assembly to the door.

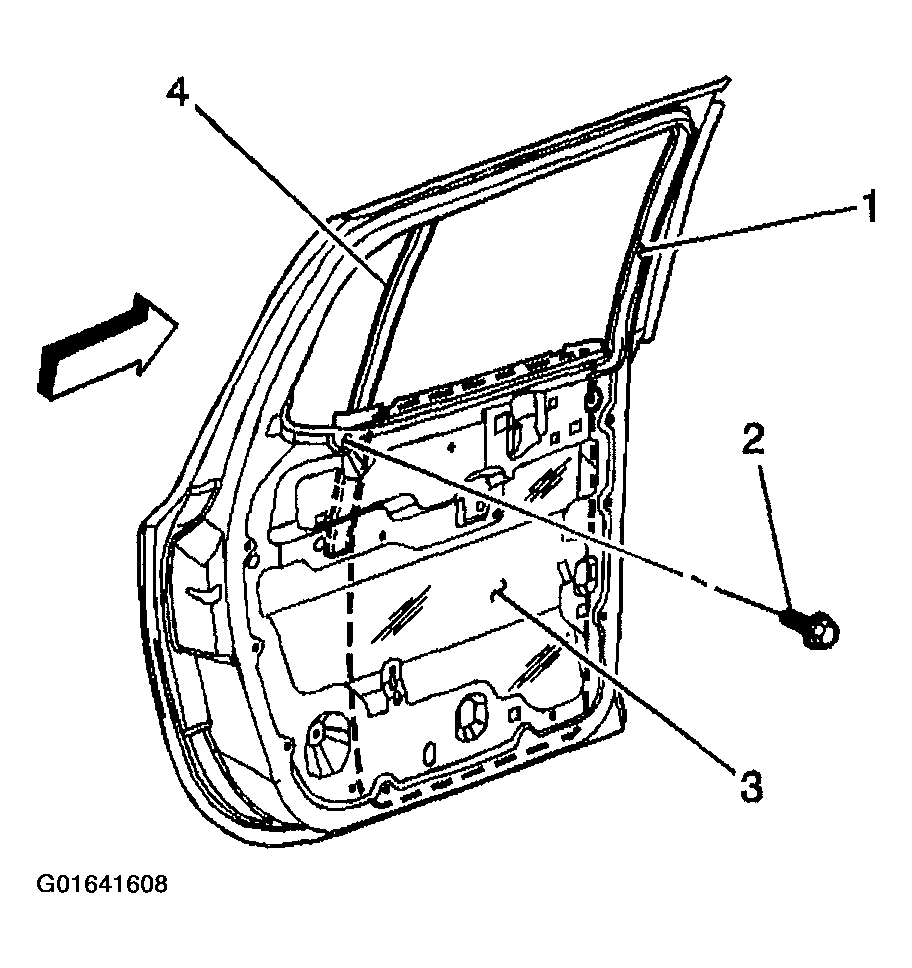

    2. Fig 1: Installing Weatherstrip/Run Channel Assembly To Door - Rear (TrailBlazer EXT, Envoy XL)
    G01641608Courtesy of GENERAL MOTORS CORP.
  2. Install the quarter glass into the window opening by pressing the window channel (4) rearward until the retaining clip is fully installed.
  3. Press the weatherstrip (1) into the window frame opening.
  4. Position the tabs on the weatherstrip into the slots on the door.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the weatherstrip/run channel retaining bolt.

    Tighten

    Tighten the bolt to 10 N.m (88 lb in).

  6. Install the window glass into the run channel, slide up to the closed position, tape the window to the door frame.
  7. Install the window regulator. Refer to WINDOW REGULATOR REPLACEMENT - REAR DOOR (TRAILBLAZER, ENVOY, BRAVADA)   or WINDOW REGULATOR REPLACEMENT - REAR DOOR (TRAILBLAZER EXT, ENVOY XL)   .
  8. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR   .
  9. Install the outer window belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER   .
  10. Install the inner window belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER   .
  11. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
