Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  4. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR   .
  5. Remove the 2 bolts that retain the weatherstrip/run channel to the door.
  6. Pull the weatherstrip/run channel away from the window frame opening.
  7. Carefully twist and pull up on the weatherstrip/run channel, in order remove the weatherstrip/run channel from the top of the door frame.
  8. Remove the weatherstrip/run channel from the door.

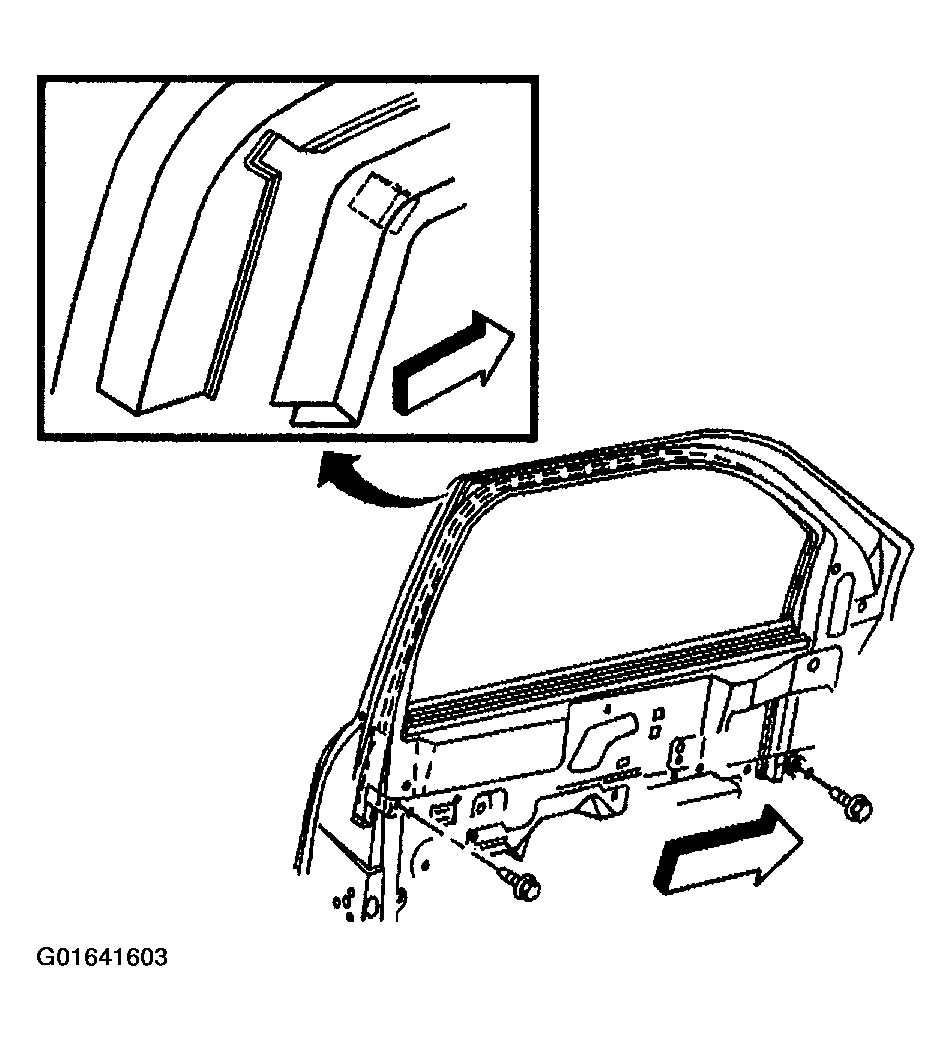

    9. Fig 1: Removing Weatherstrip/Run Channel From Front Door
    G01641603Courtesy of GENERAL MOTORS CORP.
