Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR   .
  3. Remove the speaker. Refer to SPEAKER REPLACEMENT - REAR DOOR  in Entertainment.
  4. Remove the stationary window. Refer to WINDOW REPLACEMENT - REAR DOOR (TRAILBLAZER, ENVOY, BRAVADA)   or WINDOW REPLACEMENT - REAR DOOR (TRAILBLAZER EXT, ENVOY XL)   .
  5. Disconnect the electrical connector from the regulator motor.
  6. Remove the 3 bolts that retain the window regulator assembly to the door.
  7. Remove the window regulator assembly from the door.

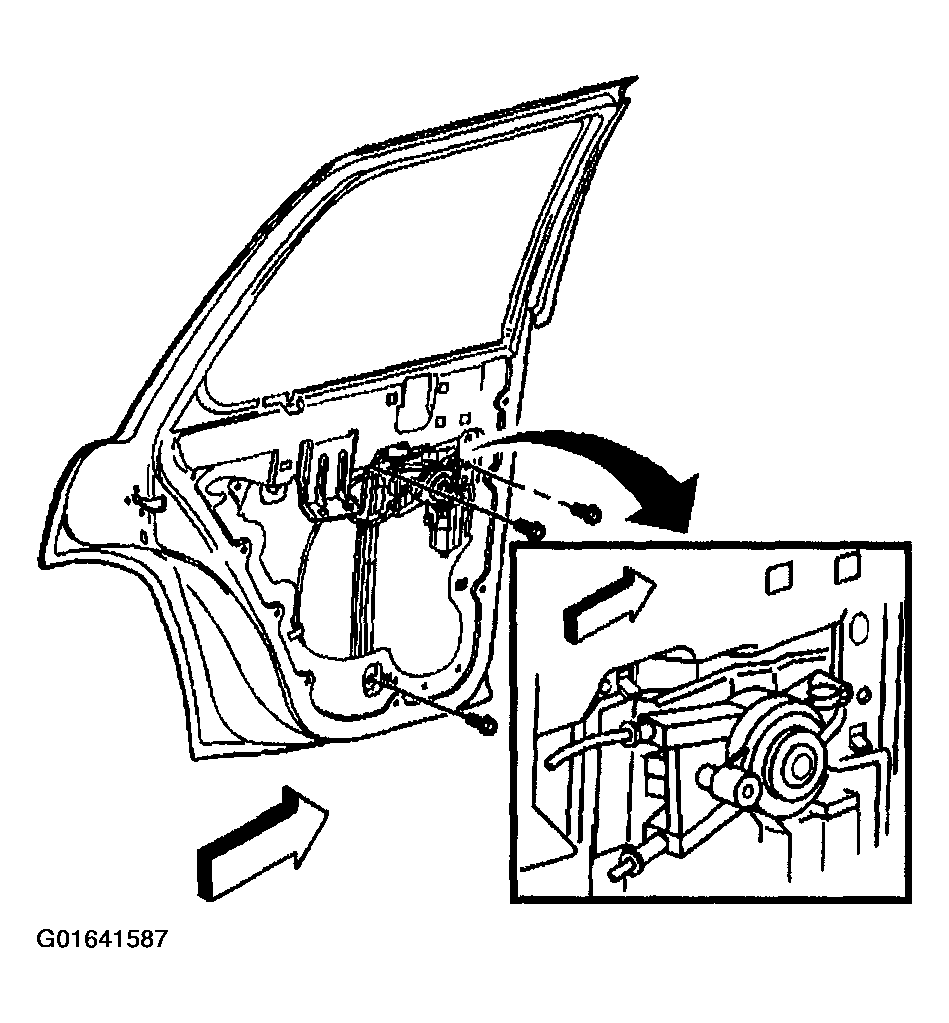

    8. Fig 1: Removing Rear Door Window Regulator (TrailBlazer, Envoy, Bravada)
    G01641587Courtesy of GENERAL MOTORS CORP.
