Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  in Entertainment.
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  4. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR   .
  5. Disconnect the electrical connector from the regulator motor.
  6. Loosen the upper 2 bolts that retain the regulator assembly to the door.
  7. Remove the remaining 3 bolts that retain the window regulator assembly and the motor to the door.
  8. Lift the regulator assembly upward in order to release the upper 2 bolts.
  9. Rotate the upper portion of the regulator assembly forward.
  10. Beginning with the lower portion, remove the regulator assembly through the door opening.
  11. Place the regulator assembly on a prepared surface.
  12. Remove the upper 2 bolts from the regulator assembly.

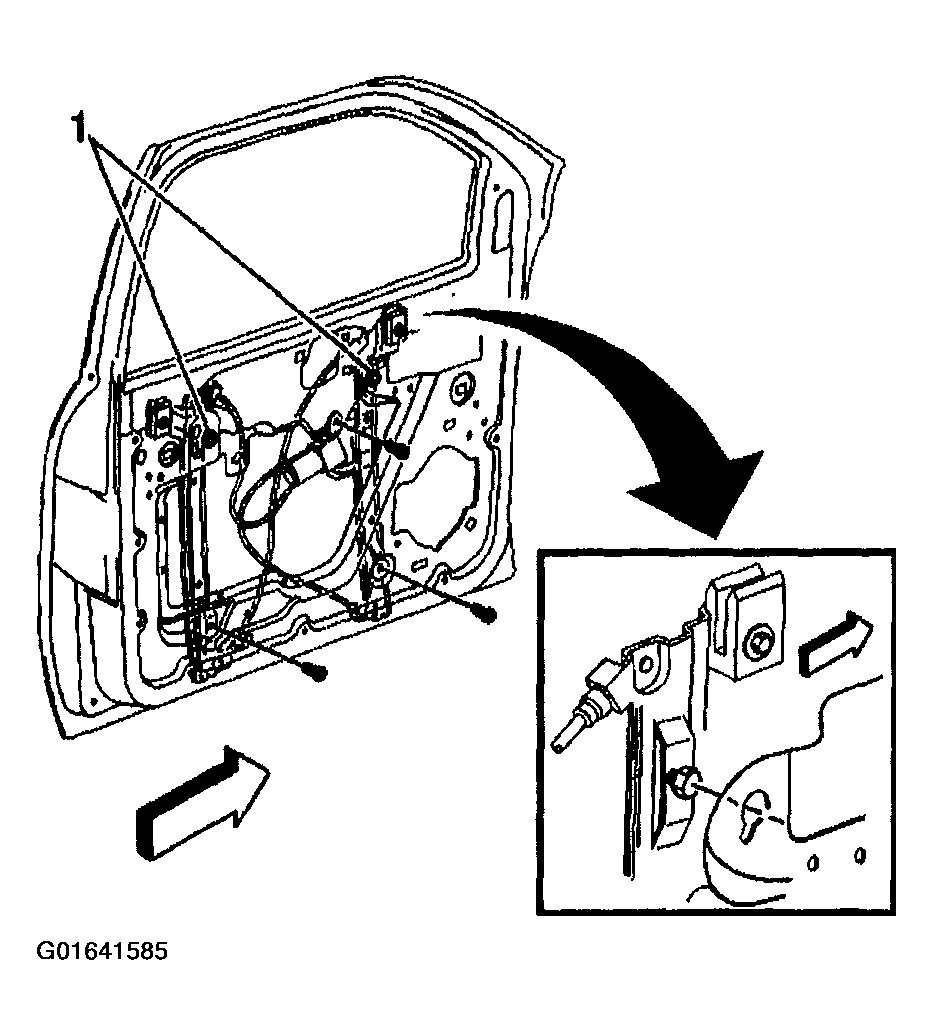

    13. Fig 1: Removing Front Door Window Regulator
    G01641585Courtesy of GENERAL MOTORS CORP.
