Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door sill plate. Refer to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
  2. Remove the weatherstrip from the pinch-weld flange.

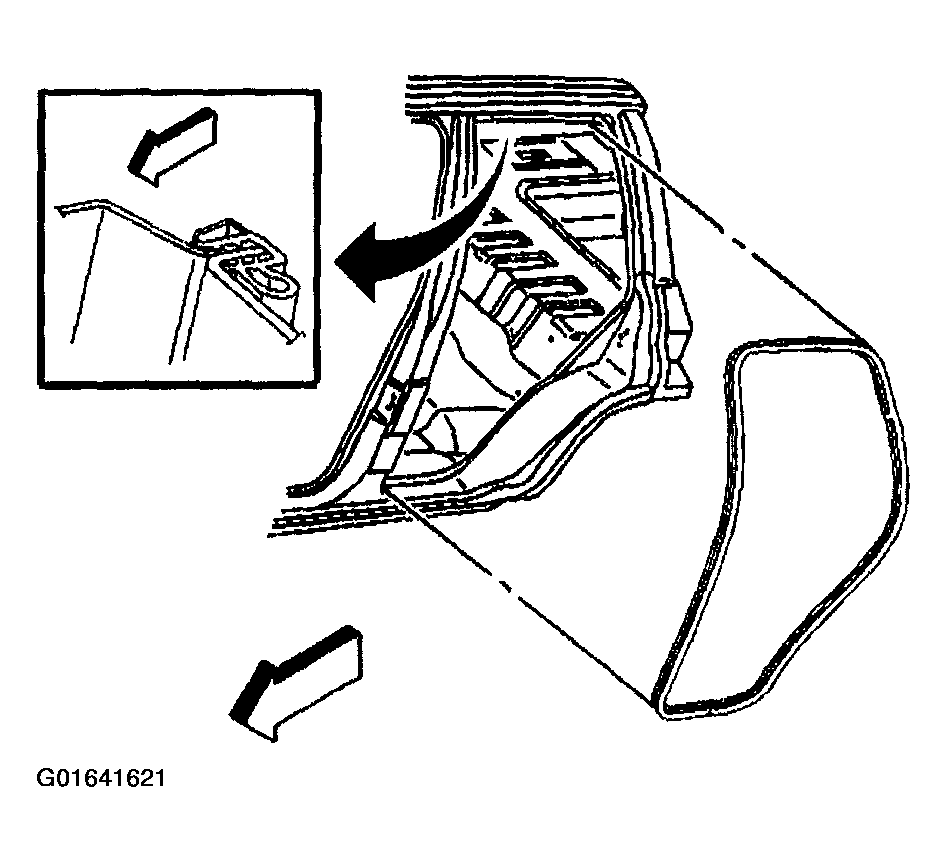

    3. Fig 1: Removing Weatherstrip From Pinch-Weld Flange - Rear Door Opening
    G01641621Courtesy of GENERAL MOTORS CORP.
