Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the side doors, right or left side.
  2. Remove the push pin retainers from the front door sealing weatherstrip located at the base of the pillar.
  3. Pull back the front door sealing weatherstrip in order to expose the weatherstrip side retainer screws.
  4. Remove the screws from the weatherstrip side retainer.
  5. Remove the weatherstrip side retainer from the windshield pillar.

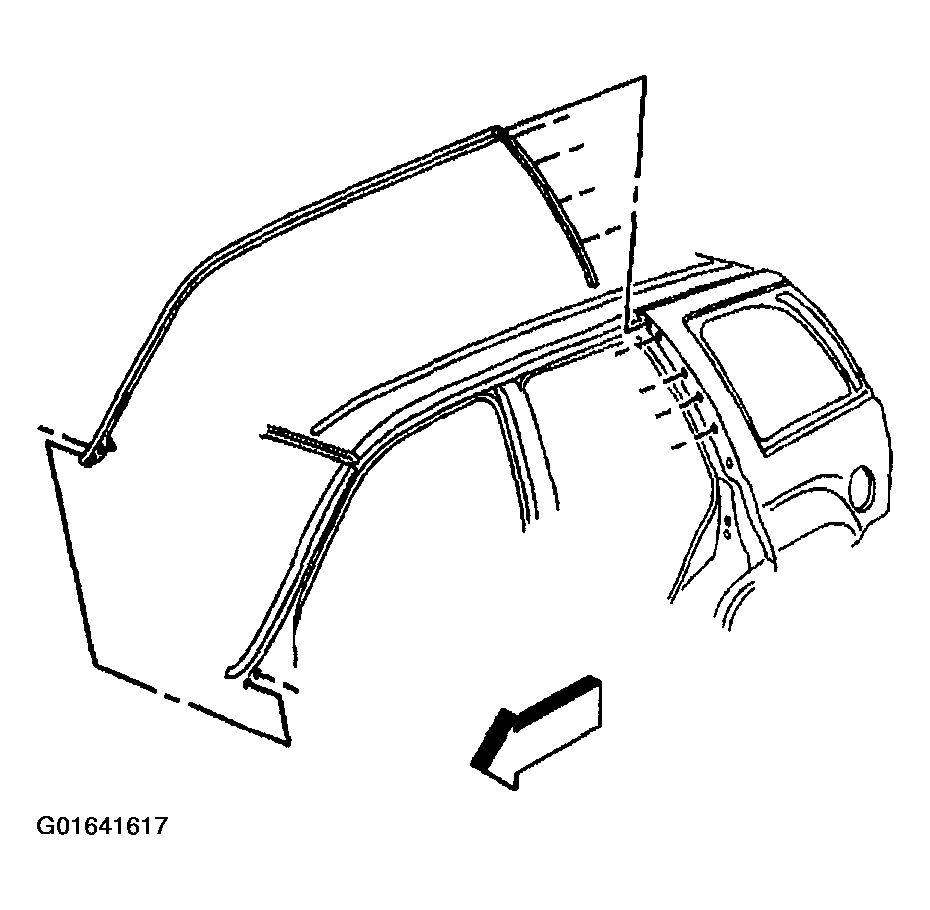

    6. Fig 1: Removing Weatherstrip Side Retainer From Windshield Pillar - Auxiliary
    G01641617Courtesy of GENERAL MOTORS CORP.
