Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip side retainer to the windshield pillar.

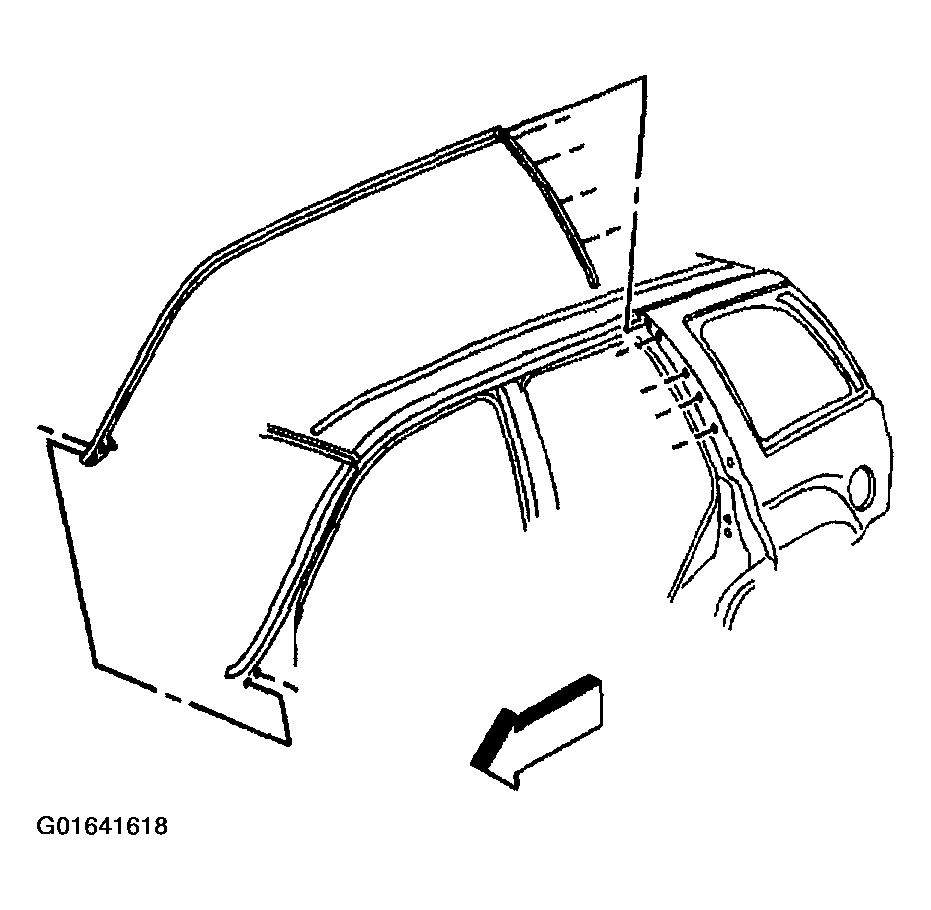

    2. Fig 1: Installing Weatherstrip Side Retainer To Windshield Pillar - Auxiliary
    G01641618Courtesy of GENERAL MOTORS CORP.
  2. Install the screws to the weatherstrip side retainer.

    Tighten

    Tighten the screws to the weatherstrip side retainer to 2 N.m (18 lb in).

  3. Install the push pin retainers to the front door sealing weatherstrip located at the base of the pillar.
  4. Close the doors.
