Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  3. Carefully remove the water deflector from the door by releasing the adhesive backing.

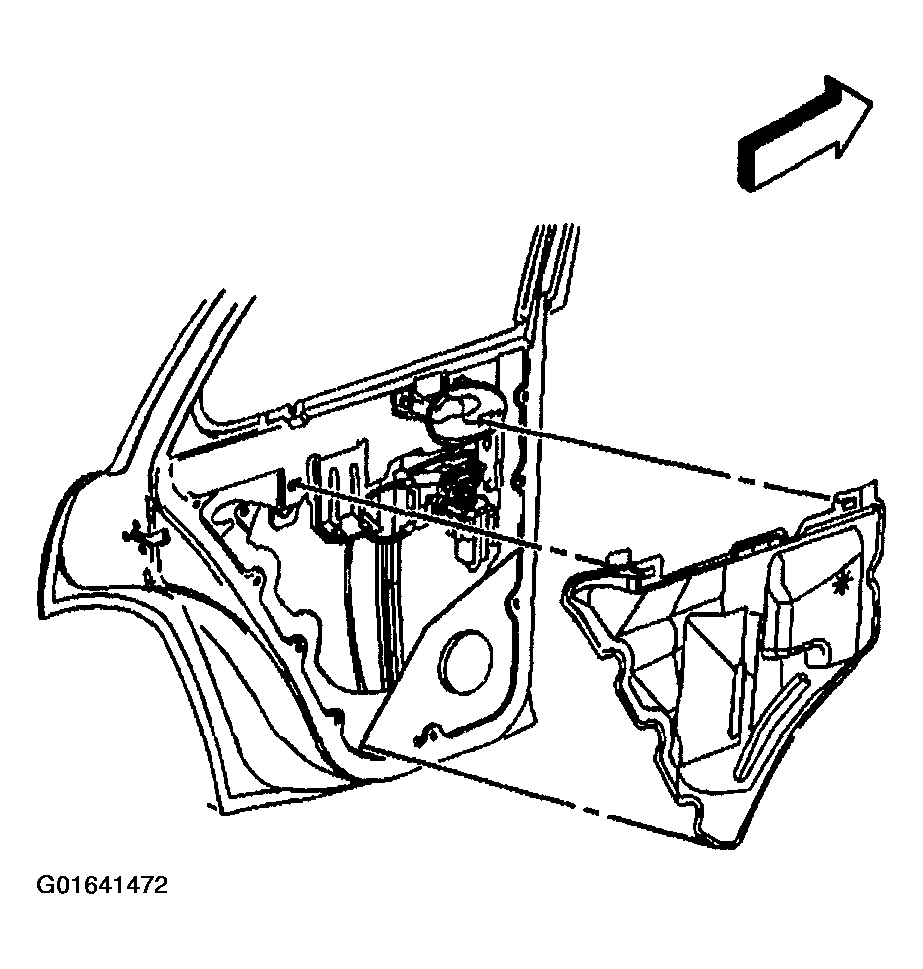

    4. Fig 1: Removing Rear Door Water Deflector
    G01641472Courtesy of GENERAL MOTORS CORP.
