Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  in Entertainment.
  3. Remove the outside rear view mirror (ORVM) wire harness from the door.
  4. Carefully remove the water deflector from the door by releasing the adhesive backing.

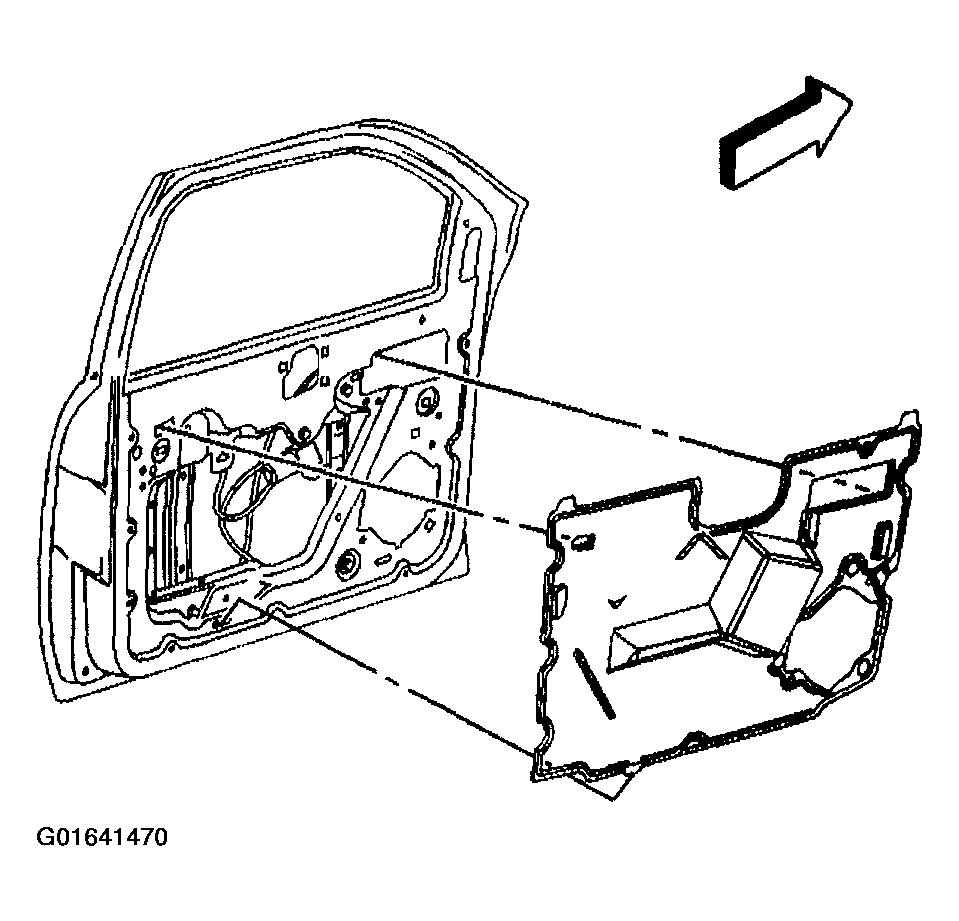

    5. Fig 1: Removing Front Door Water Deflector
    G01641470Courtesy of GENERAL MOTORS CORP.
