Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover from the trim panel.
  2. Remove the 2 retaining screws from the trim panel.
  3. Remove the power window switch. Refer to POWER WINDOW SWITCH REPLACEMENT - REAR DOOR (CHEVROLET)   or POWER WINDOW SWITCH REPLACEMENT - REAR DOOR (GMC/OLDSMOBILE)   .
  4. Use the J 36796 in order to release the fasteners that retain the trim panel to the door.
  5. Remove the trim panel from the door.

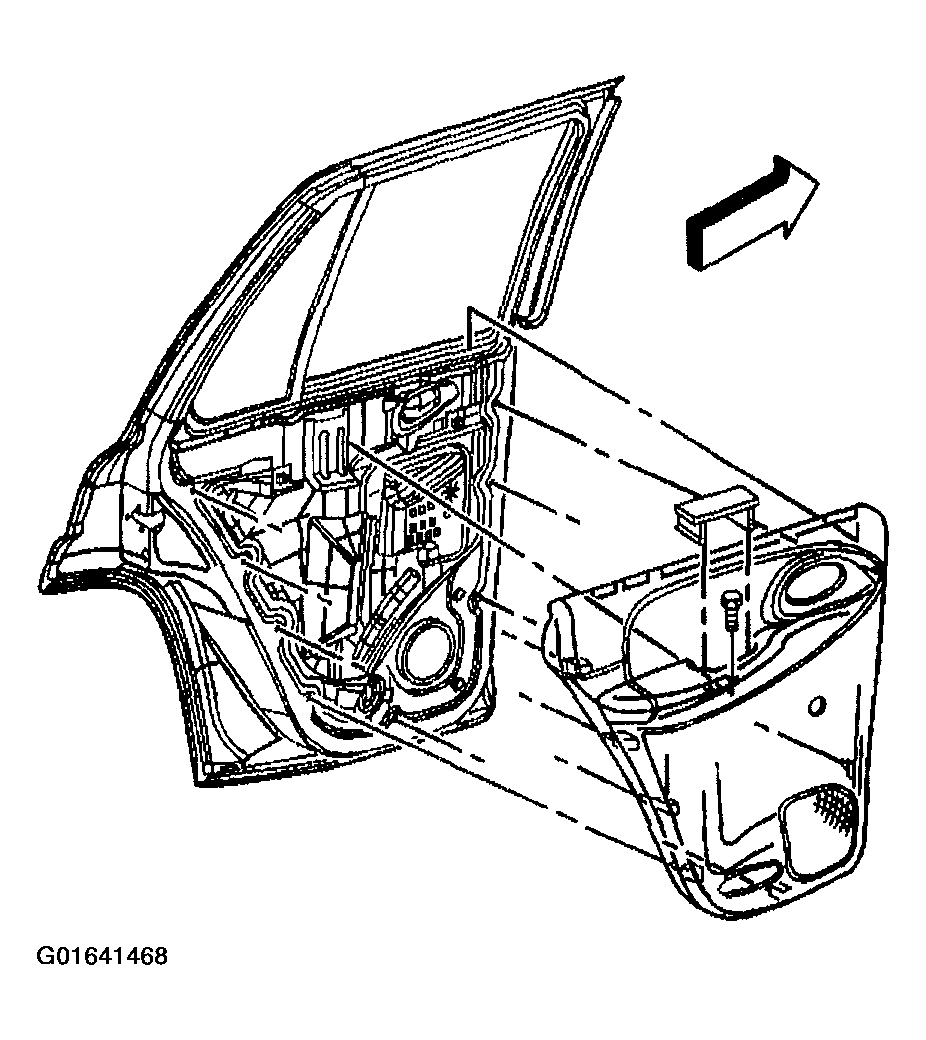

    6. Fig 1: Removing Side Rear Door Trim Panel
    G01641468Courtesy of GENERAL MOTORS CORP.
