Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory switch panel. Refer to SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER   .
  2. Remove the 2 trim panel retaining bolts.
  3. Use the J 36796 in order to release the 9 trim panel fasteners from the door.
  4. Remove the trim panel from the door.

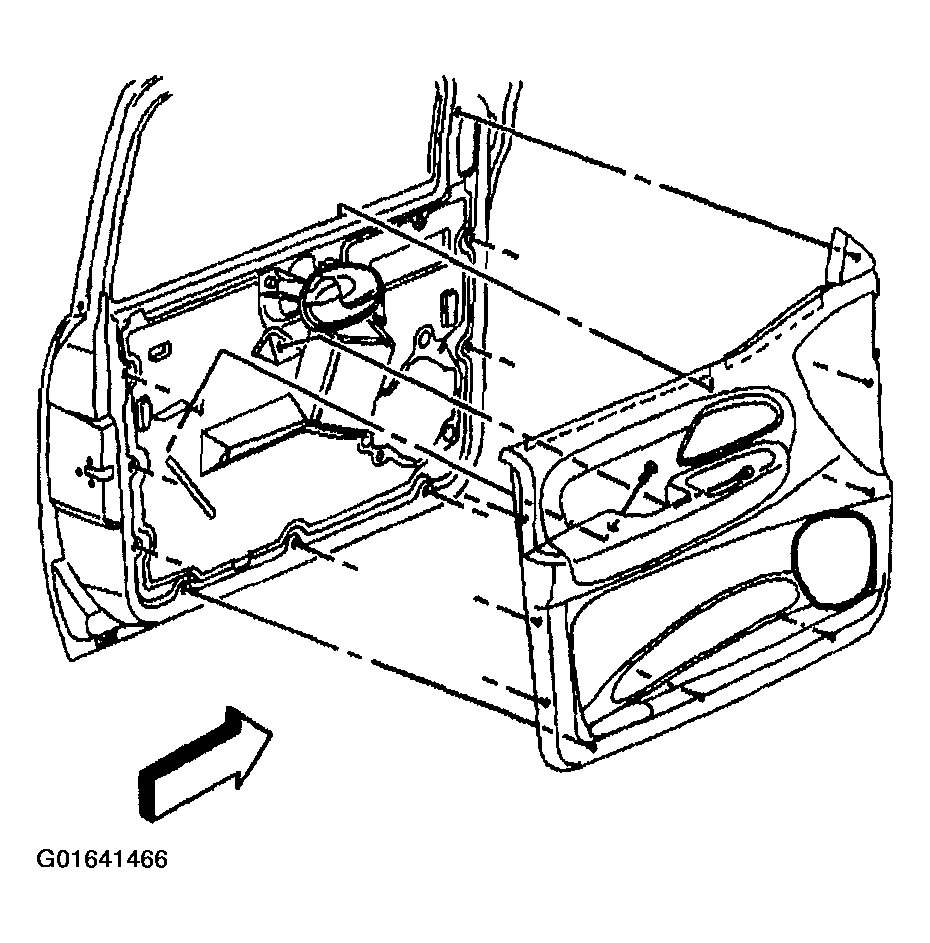

    5. Fig 1: Removing Side Front Door Trim Panel
    G01641466Courtesy of GENERAL MOTORS CORP.
  5. Remove the inside door handle bezel. Refer to DOOR HANDLE BEZEL REPLACEMENT   .
  6. Remove the outside rear view mirror (ORVM) switch, if equipped. Refer to POWER MIRROR SWITCH REPLACEMENT .
