Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up on the front edge of the switch panel in order to release the front retaining clip.
  2. Lift up on the rear edge of the switch panel in order to release the 2 rear retaining clips.
  3. If equipped, disconnect the electrical connectors from the driver door module (1).

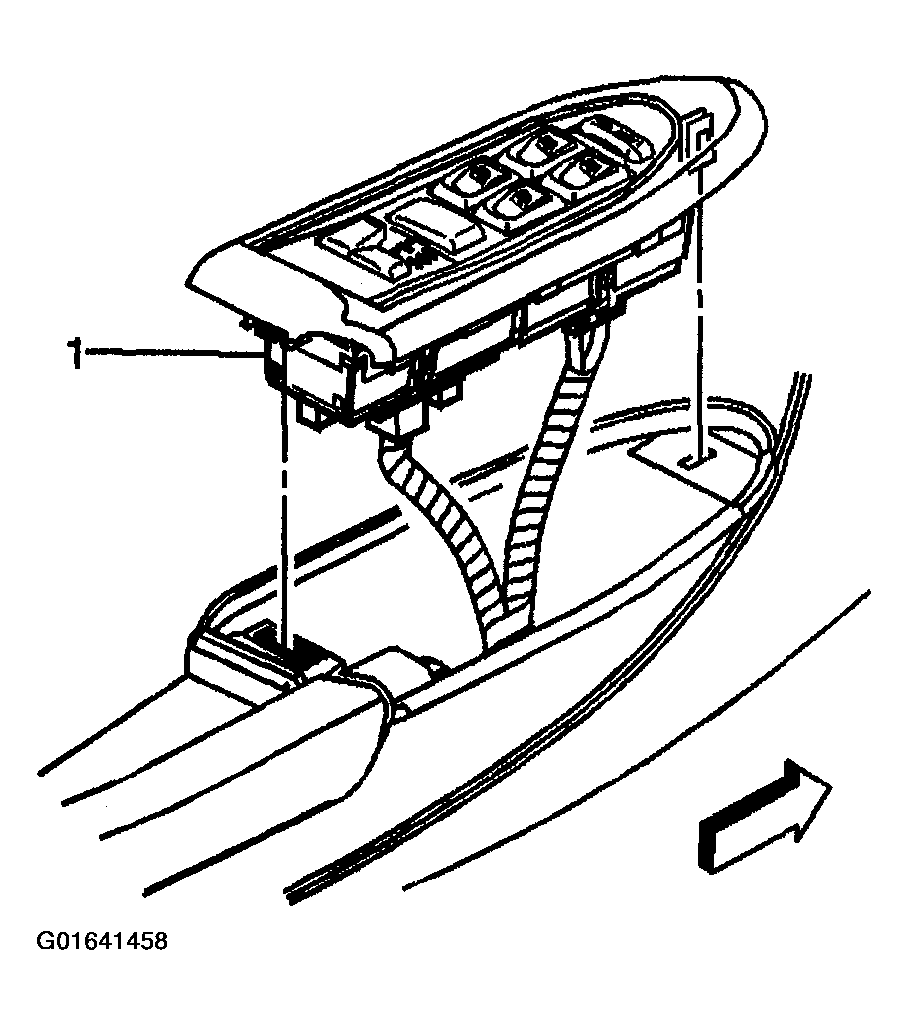

    4. Fig 1: Removing Driver Door Lock And Side Window Switch
    G01641458Courtesy of GENERAL MOTORS CORP.
  4. If replacing only the driver door module, remove the module from the door trim panel.
  5. Disconnect the remaining electrical connectors from the switch panel.
  6. If replacing only the switch panel, retain the driver door module for transfer.
  7. Remove the switch panel assembly from the vehicle
