Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  3. Starting at the back of the strip, carefully lift the strip off the pinch- weld flange until the strip is completely released.

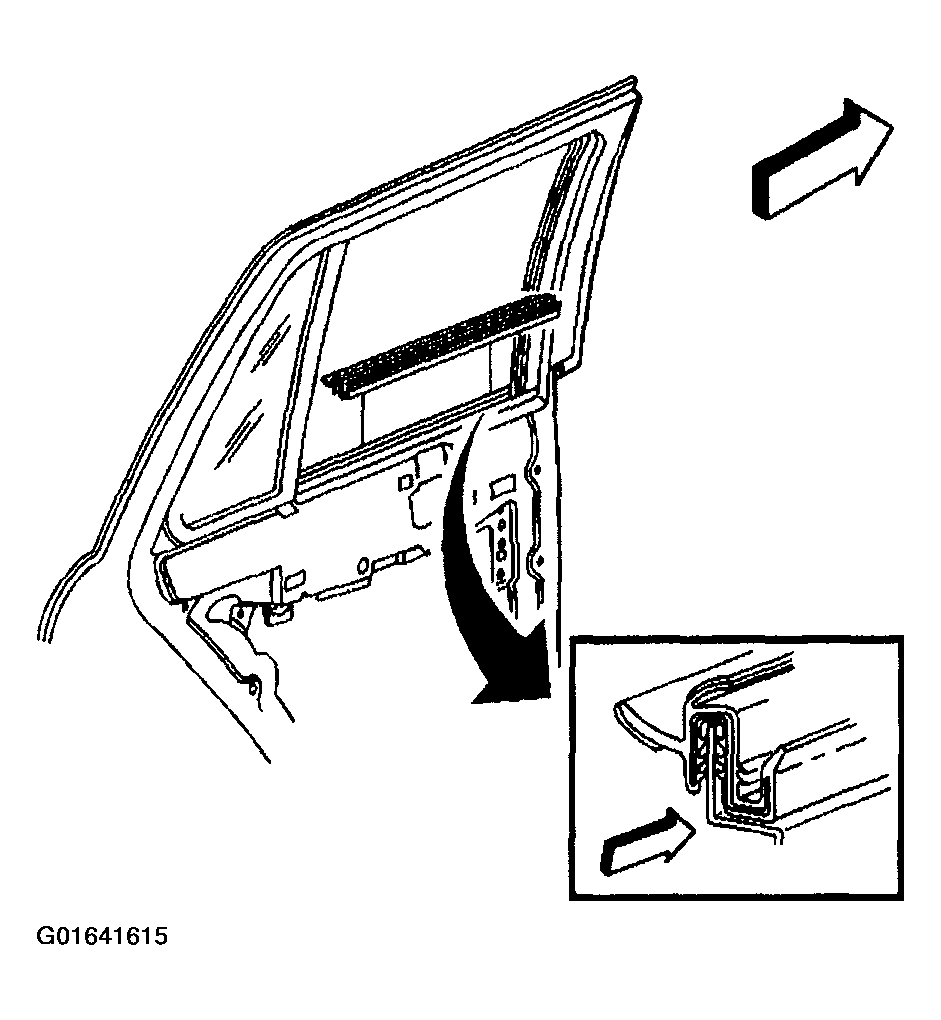

    4. Fig 1: Removing Sealing Strip - Rear Door Window Belt Inner
    G01641615Courtesy of GENERAL MOTORS CORP.
