Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Starting at the bottom of the sealing strip, pull the sealing strip away from the door pinch-weld flange.
Lift upward in order to remove the upper portion of the sealing strip from the door pinch-weld flange.
Remove the sealing strip from the door.

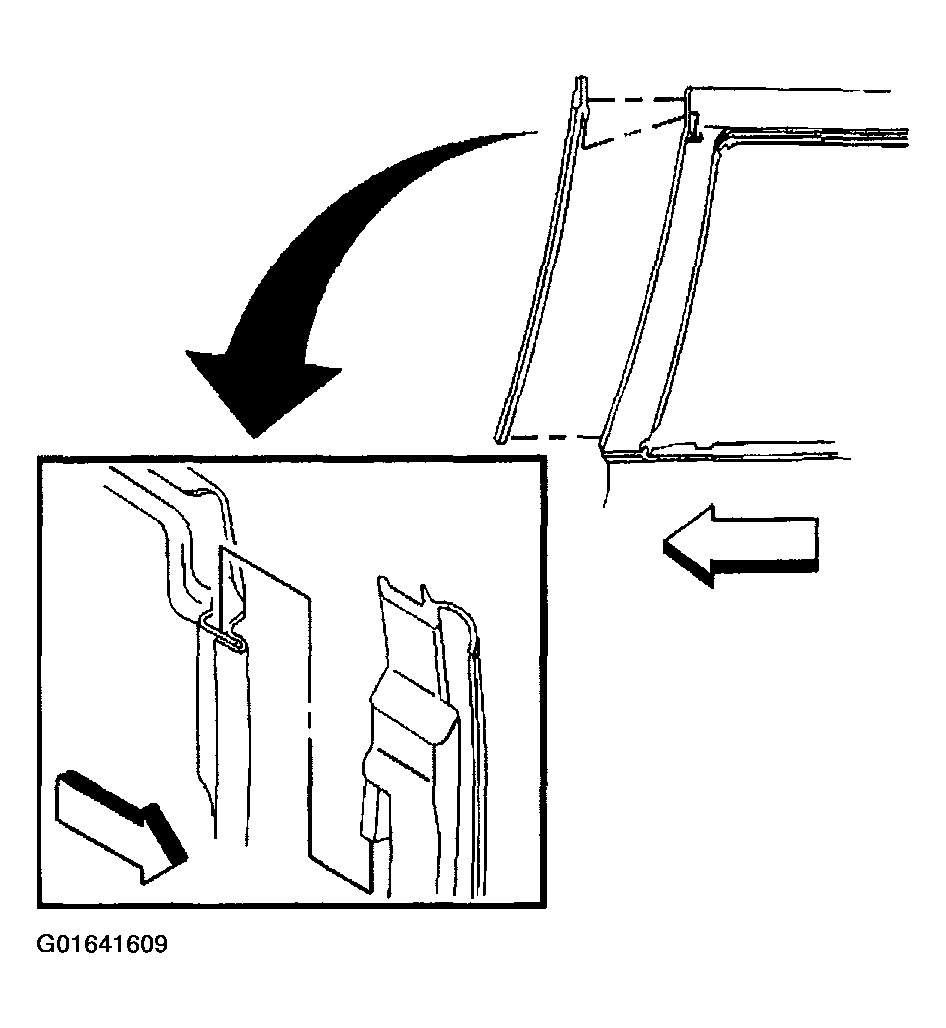

Fig 1: Removing Sealing Strip - Rear Door Upper

Courtesy of GENERAL MOTORS CORP.
