Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed tool, remove the window switch bezel from the door trim panel.
  2. Disconnect the electrical connector from the window switch.
  3. Release the retaining clips that attach the power window switch to the bezel.
  4. Remove the switch from the bezel.

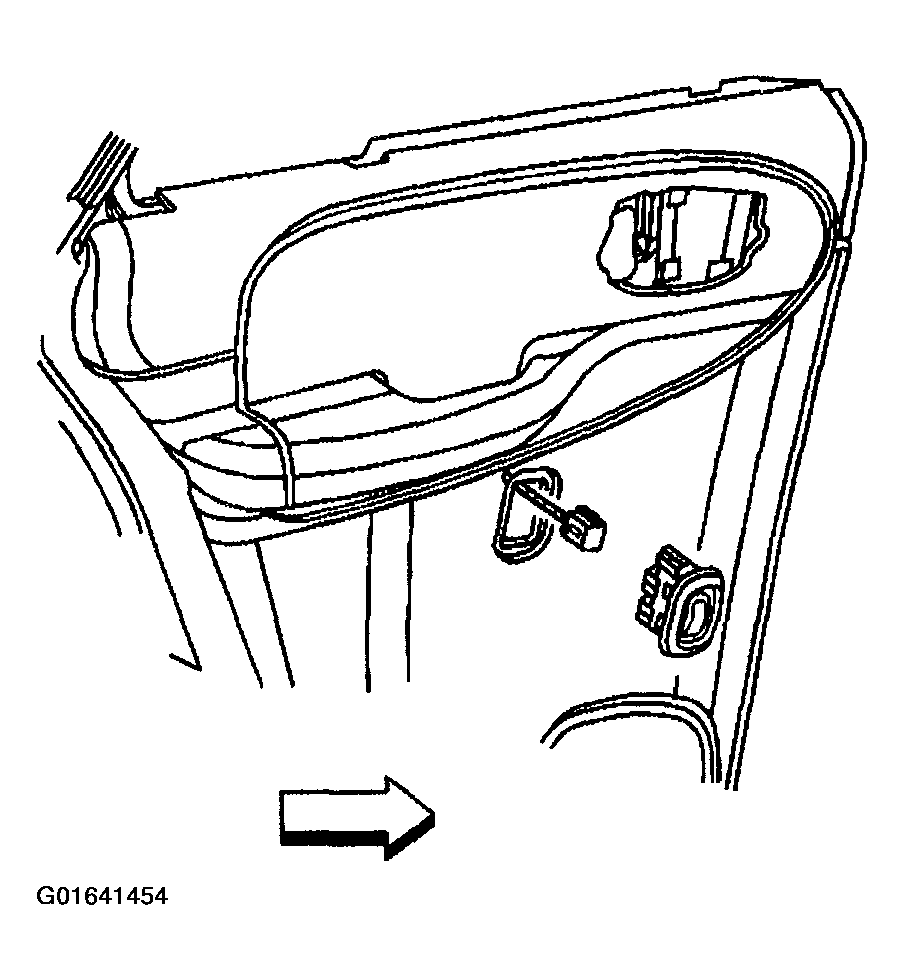

  5. Fig 1: Removing Power Window Switch - Rear Door (Chevrolet)
    G01641454Courtesy of GENERAL MOTORS CORP.
