Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the outside rear view mirror (ORVM) harness from the door.

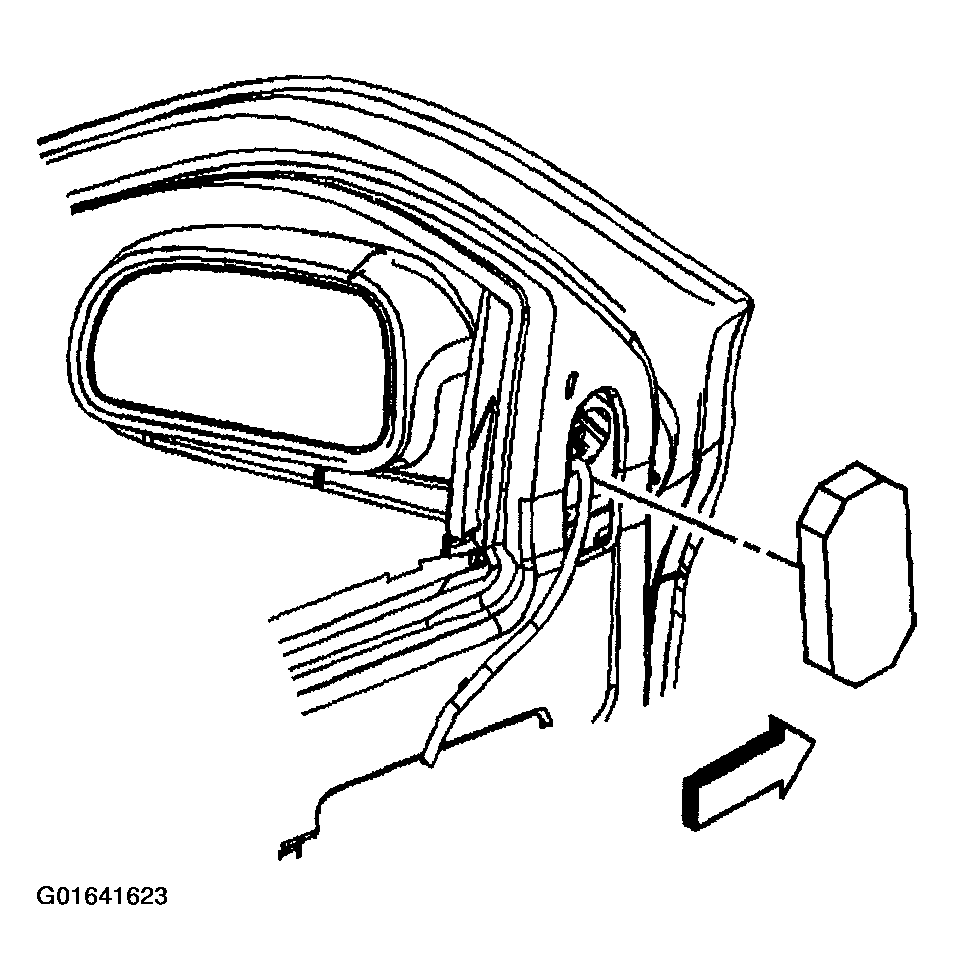

Remove the side door insulator.

Fig 1: Removing Side Door Insulator

Courtesy of GENERAL MOTORS CORP.

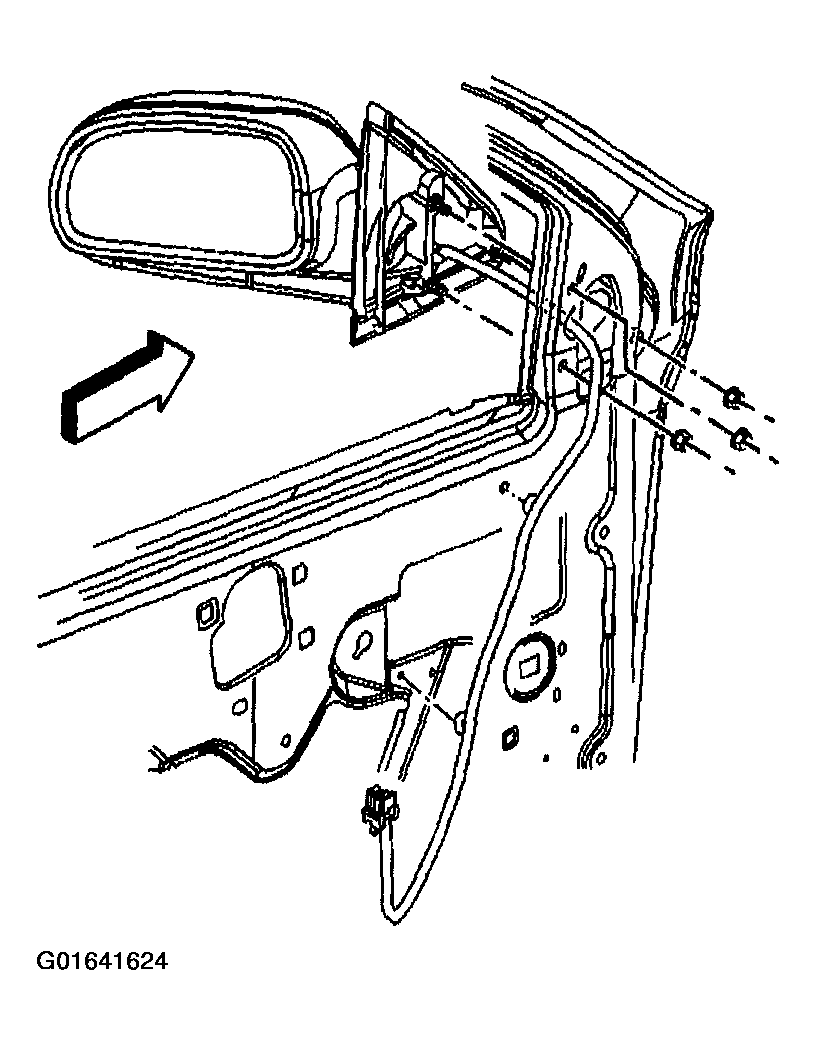

Remove the 3 ORVM retaining bolts.
Release the clip that retains the ORVM to the door.
Remove the ORVM assembly from the door.

Fig 2: Releasing Clip Retaining ORVM To Door

Courtesy of GENERAL MOTORS CORP.
