Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the water deflector from the door. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  3. Remove the outside handle from the door. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE   .
  4. Remove the lock cylinder from the door handle.

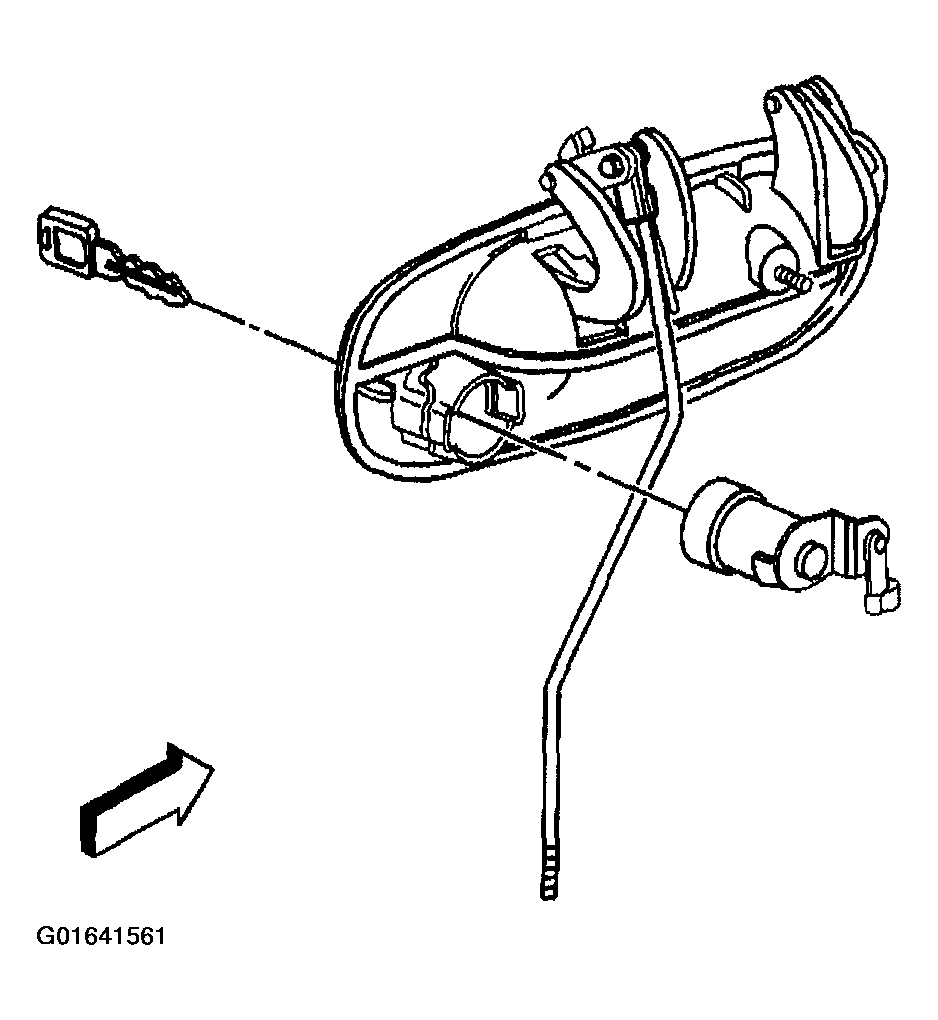

    5. Fig 1: Removing Lock Cylinder From Door Handle
    G01641561Courtesy of GENERAL MOTORS CORP.
