Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim Panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  3. Remove the door latch assembly. Refer to LATCH REPLACEMENT - FRONT DOOR   .
  4. Remove the 2 screws that retain the actuator (1) to the lock.

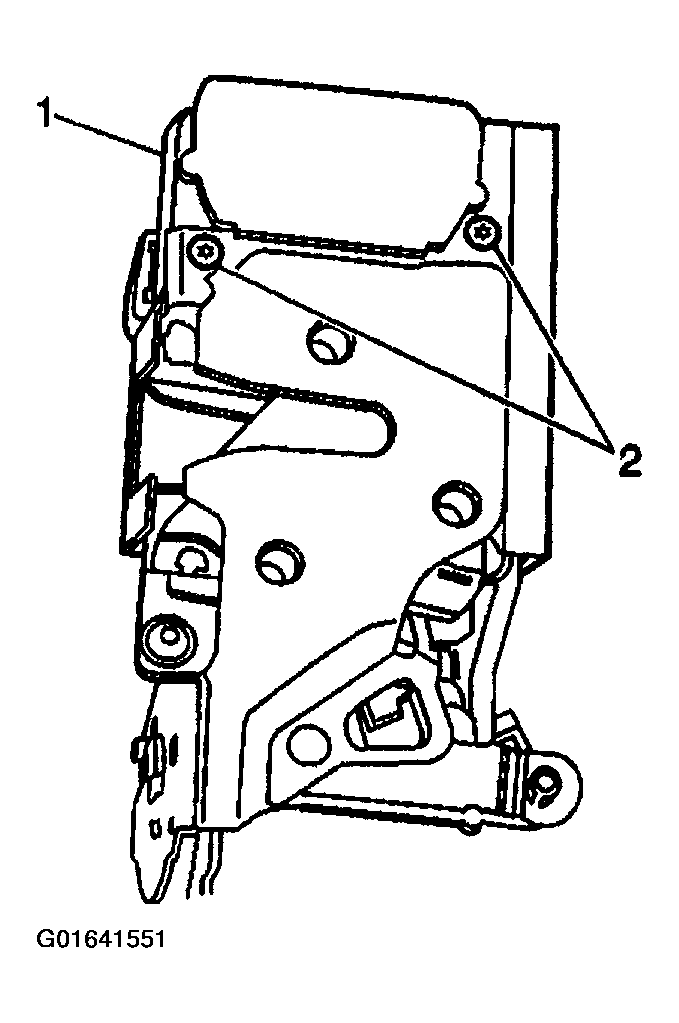

    5. Fig 1: Removing Screws Retaining Actuator To Lock - Front Door
    G01641551Courtesy of GENERAL MOTORS CORP.
  5. Simultaneously lift up on and rotate the actuator away from the latch in order to disengage the rubber bumper (1) from the latch.
  6. Remove the actuator from the latch.

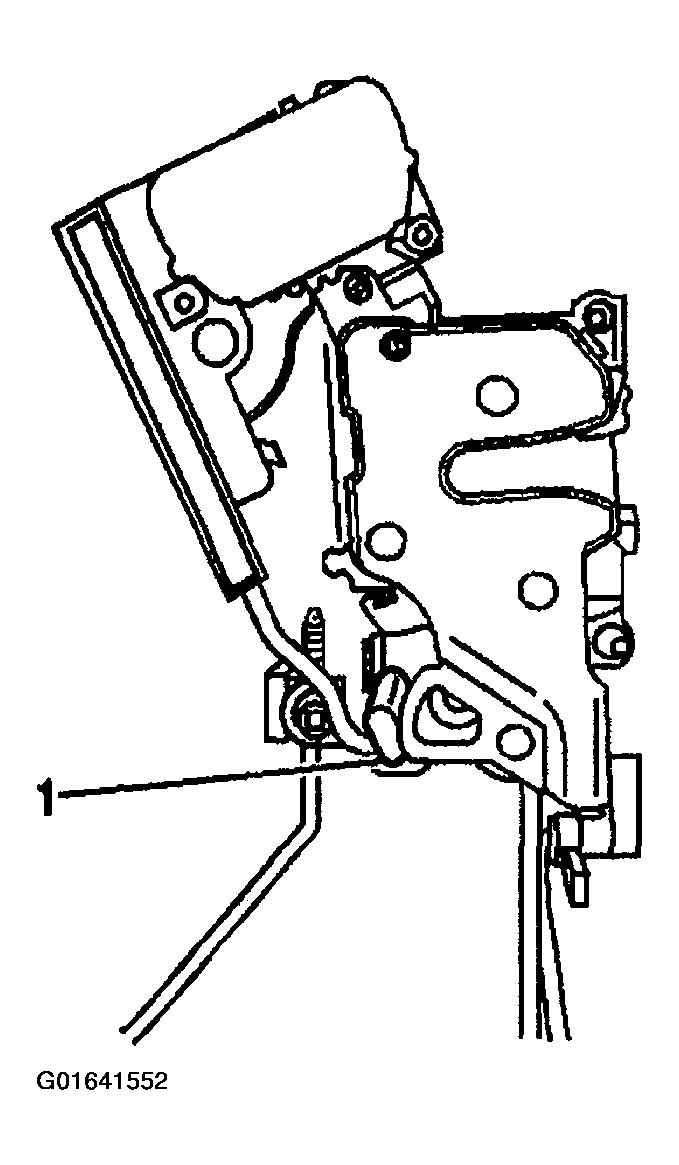

    7. Fig 2: Disengaging Rubber Bumper From Latch - Front Door
    G01641552Courtesy of GENERAL MOTORS CORP.
