Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR   .
  3. Release the clip (1) retaining the lock rod (2) to the outside door handle.
  4. Remove the lock rod (2) from the outside door handle.
  5. Remove the nuts retaining the outside door handle to the door.
  6. Remove the outside door handle from the door.

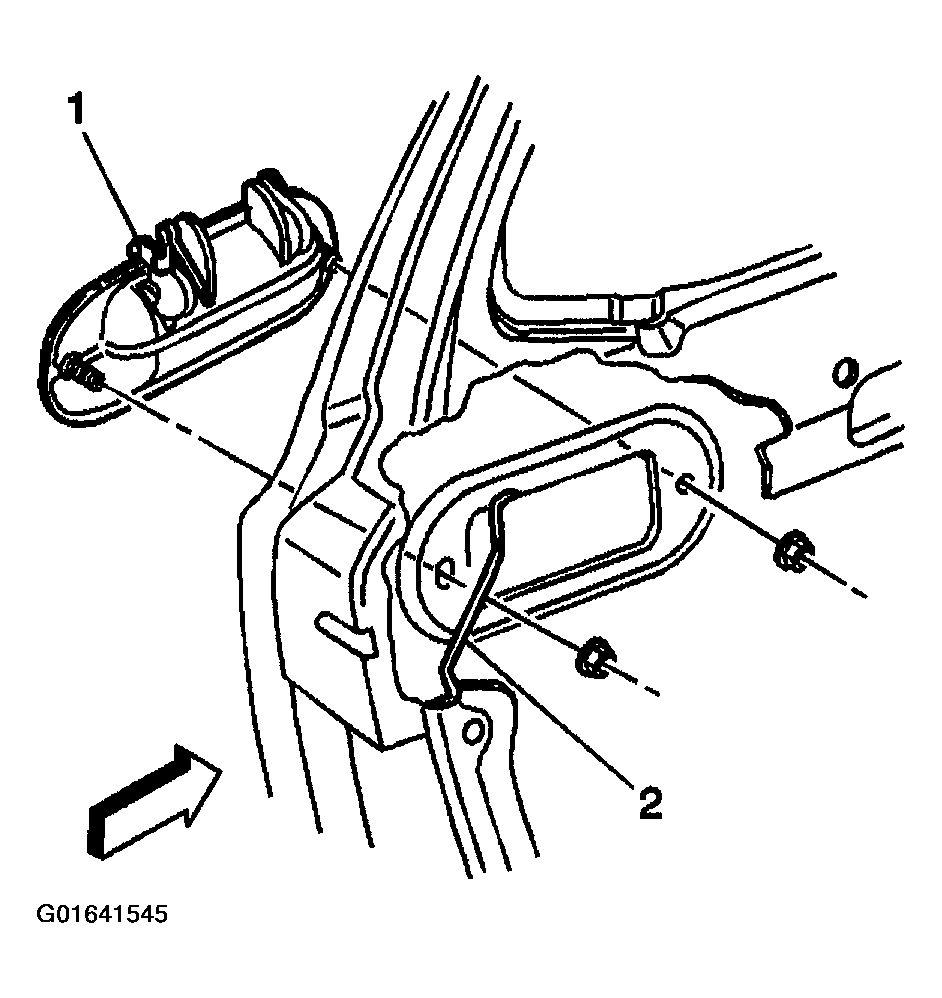

    7. Fig 1: Removing Rear Outside Door Handle (TrailBlazer EXT, Envoy XL)
    G01641545Courtesy of GENERAL MOTORS CORP.
