Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   or TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Remove the handle retaining bolt.
  3. Release the handle locator tab from the locator cutout, by sliding the handle forward.
  4. Release the rod retainer locks.
  5. Remove the rods from the handle.
  6. Remove the handle from the door.

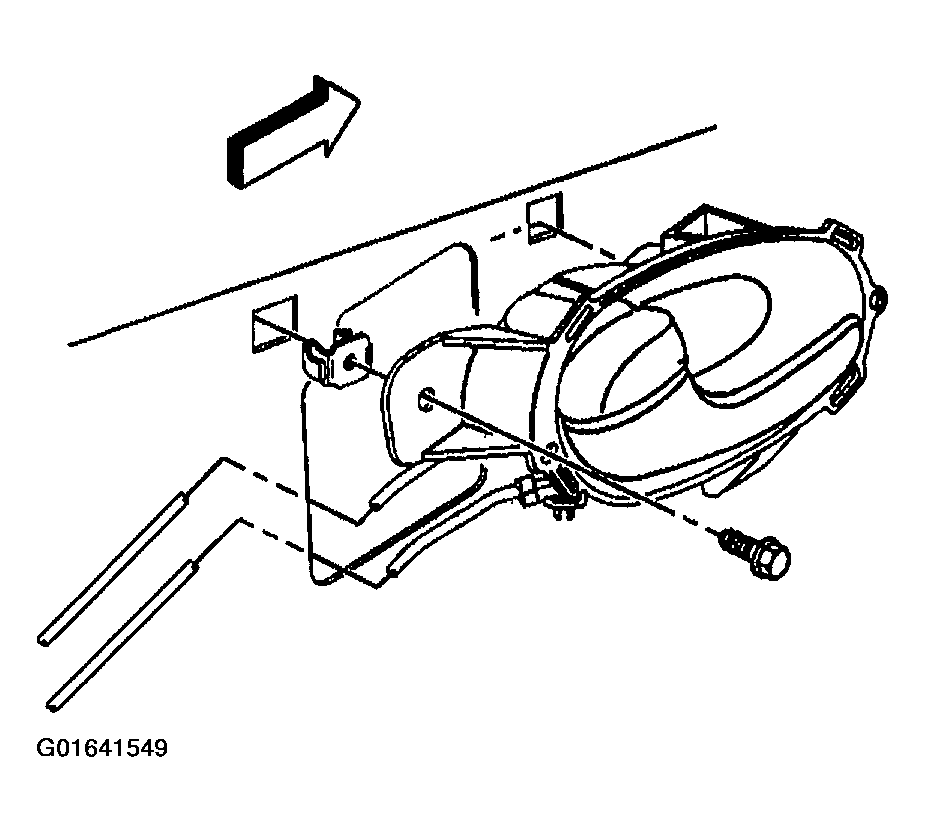

    7. Fig 1: Removing Inside Door Handle Retaining Bolt
    G01641549Courtesy of GENERAL MOTORS CORP.
