Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel from the door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   or TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Release the 4 tabs retaining the bezel to the trim panel.
  3. Remove the bezel from the trim panel.

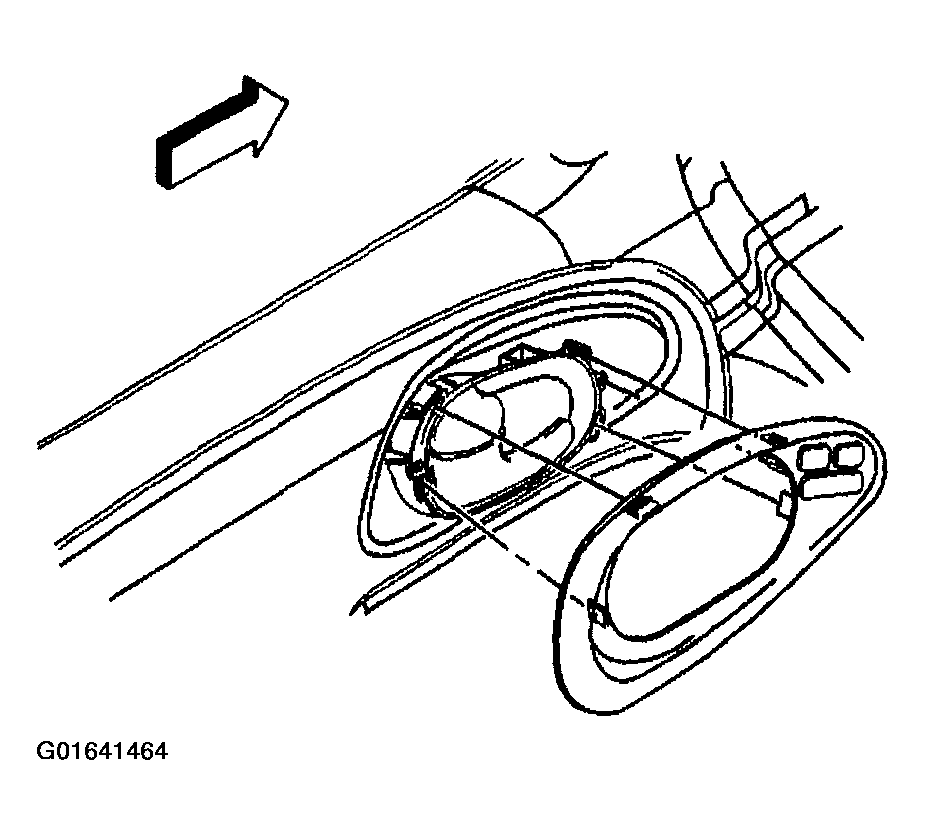

    4. Fig 1: Removing Door Handle Bezel
    G01641464Courtesy of GENERAL MOTORS CORP.
