Power Window Inoperative - Driver Door

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

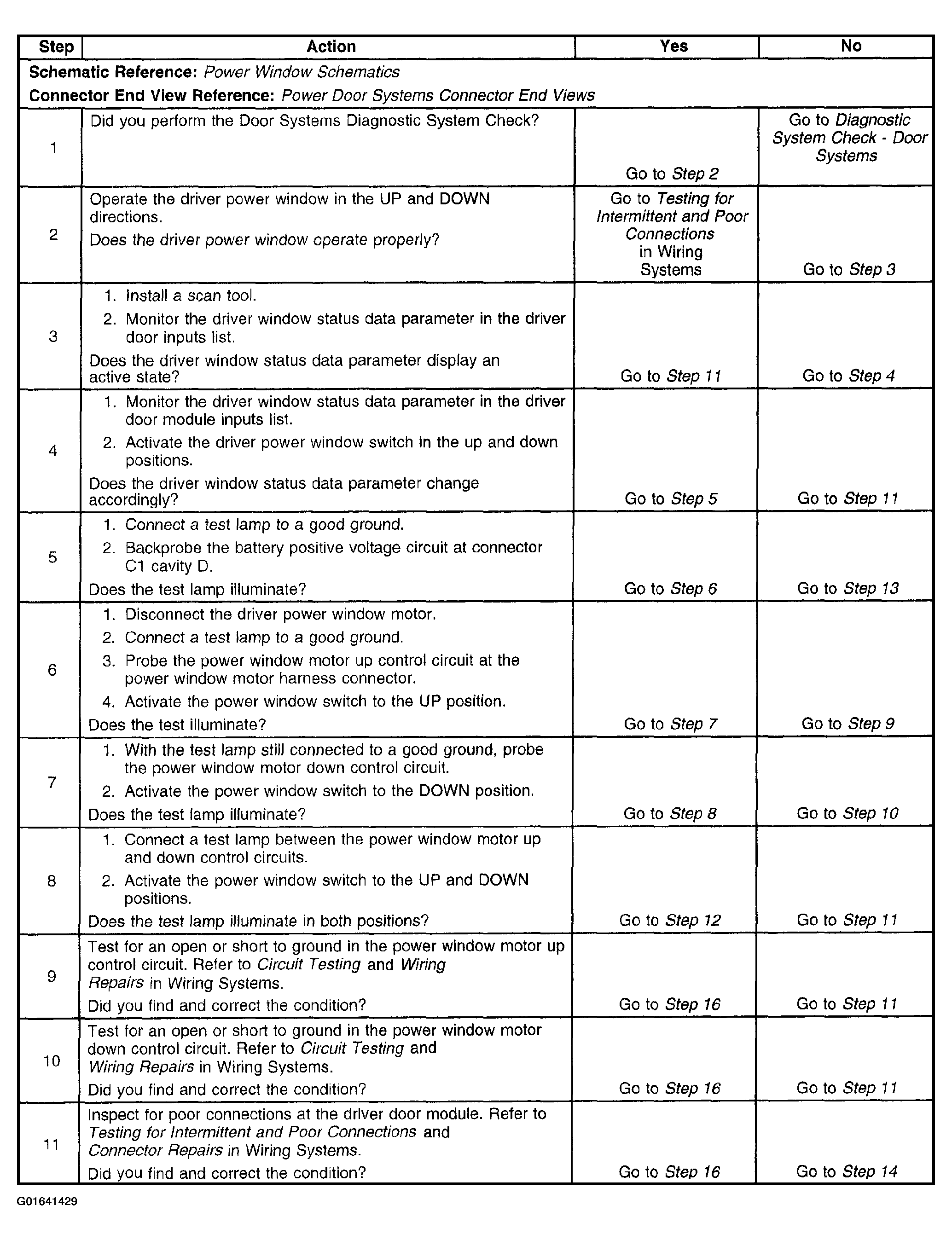

Fig 1: Power Window Inoperative Symptom Tests - Driver Door Procedure (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

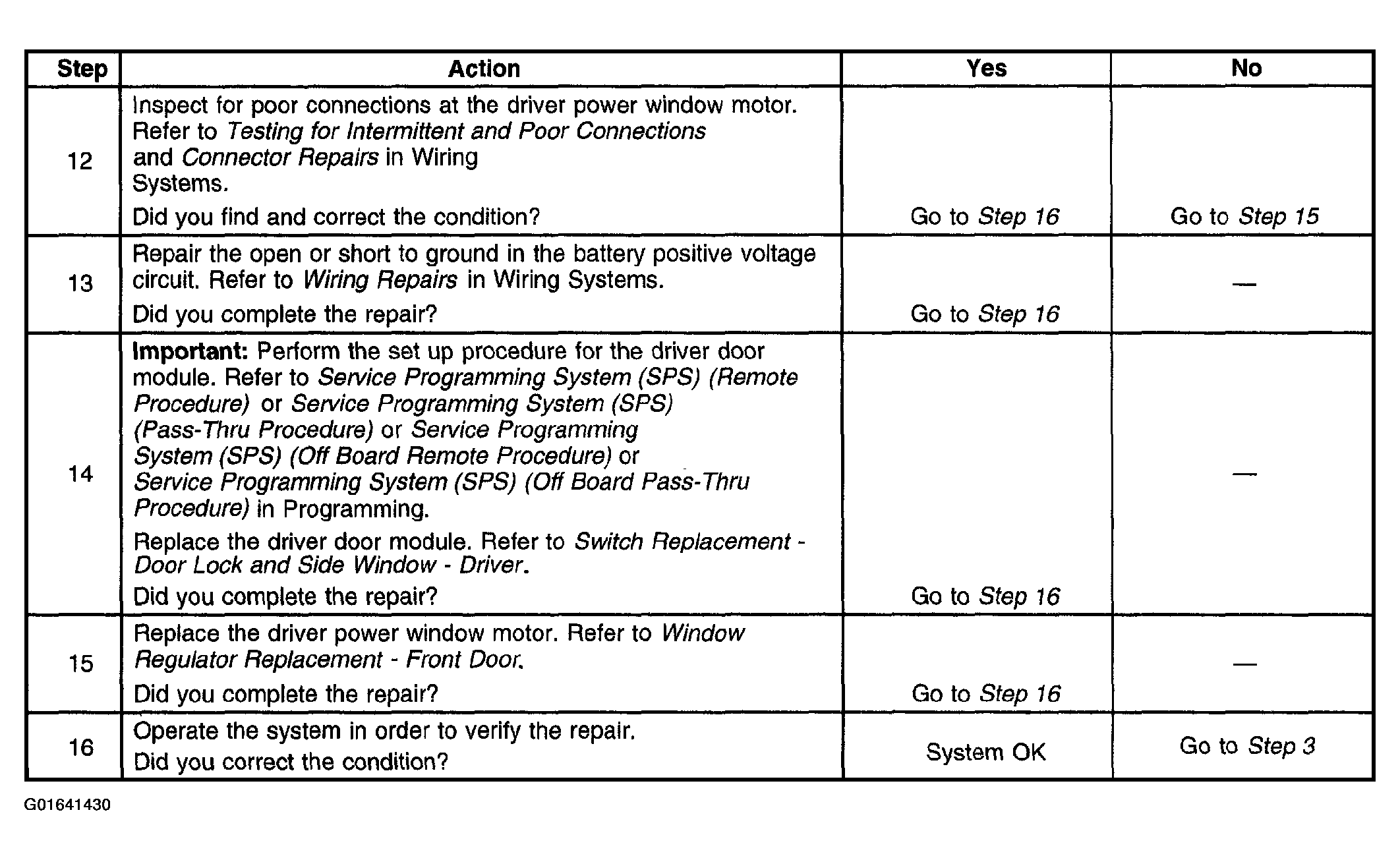

Fig 2: Power Window Inoperative Symptom Tests - Driver Door Procedure (Steps 12-16)

Courtesy of GENERAL MOTORS CORP.
