Power Mirrors Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

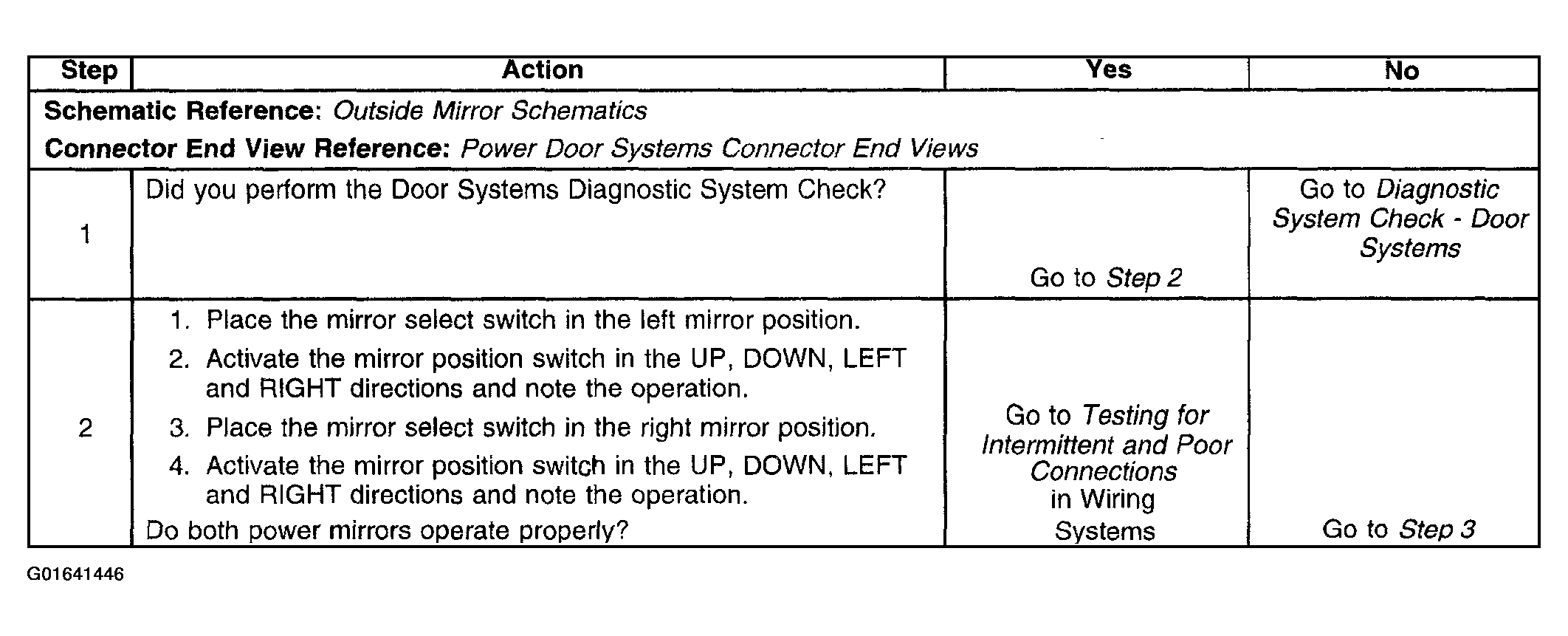

Fig 1: Power Mirrors Inoperative Symptom Tests Procedure (Steps 1-2)

Courtesy of GENERAL MOTORS CORP.

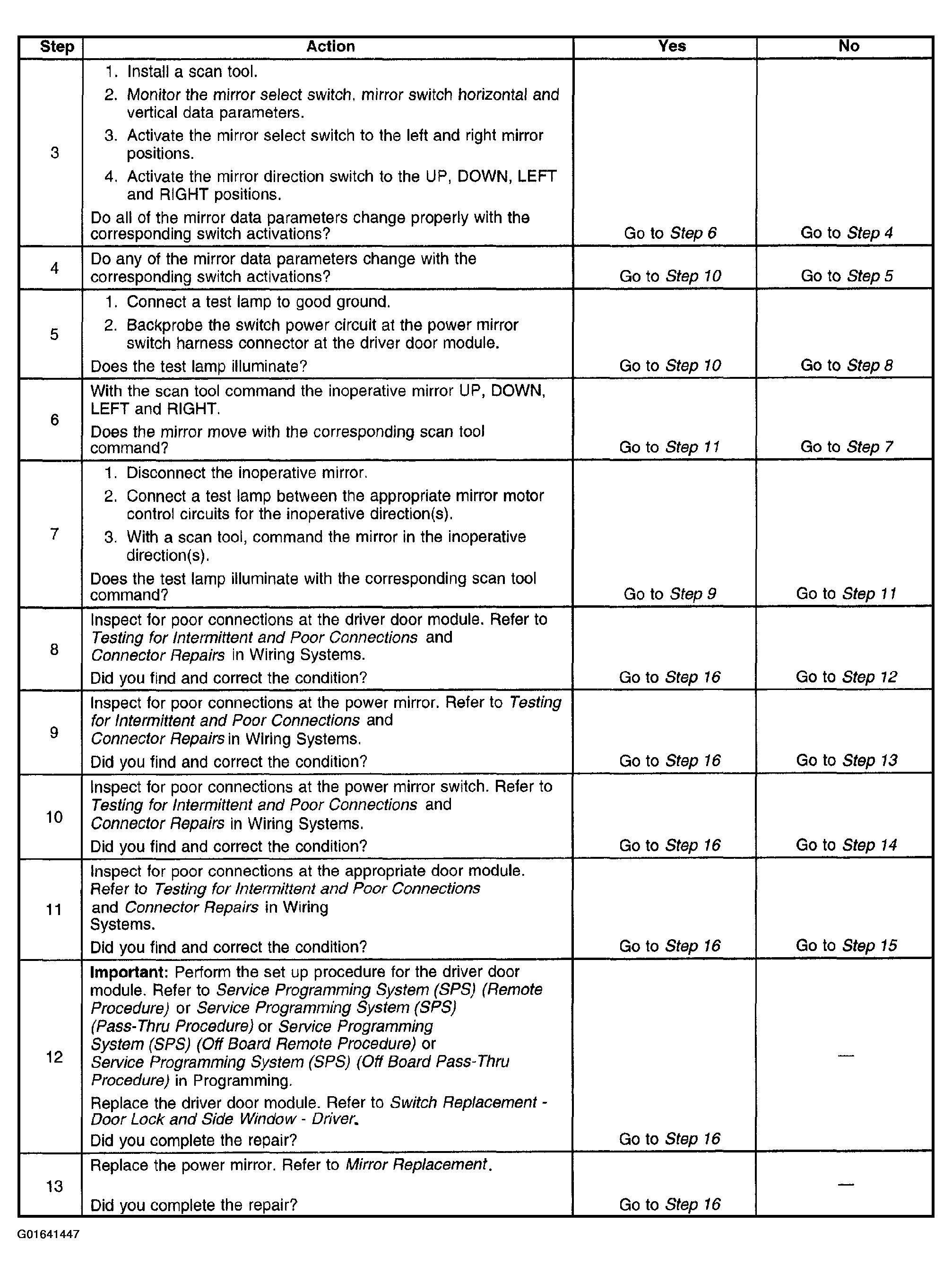

Fig 2: Power Mirrors Inoperative Symptom Tests Procedure (Steps 3-13)

Courtesy of GENERAL MOTORS CORP.

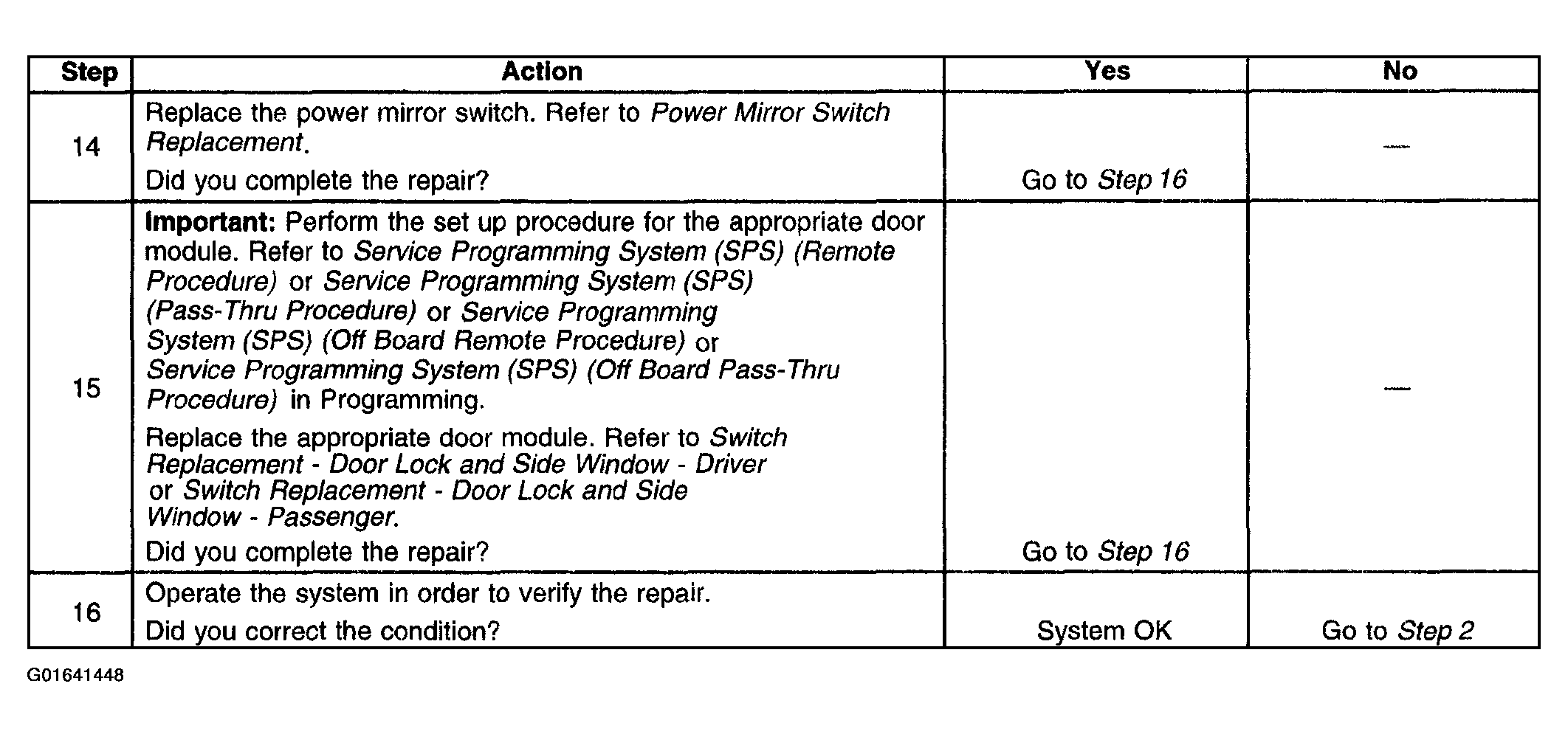

Fig 3: Power Mirrors Inoperative Symptom Tests Procedure (Steps 14-16)

Courtesy of GENERAL MOTORS CORP.
