Power Mirrors - Memory Functions Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

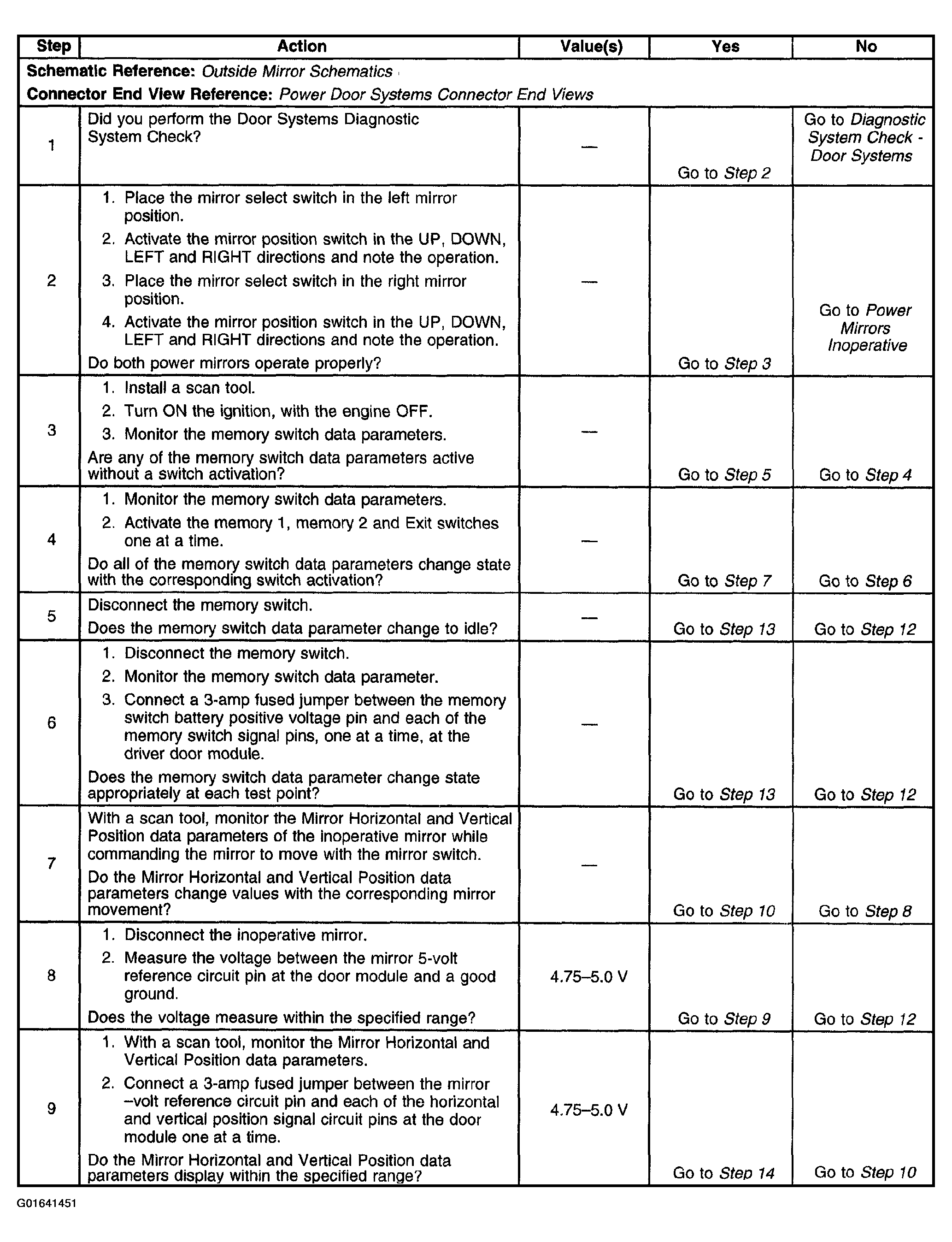

Fig 1: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 1-9)

Courtesy of GENERAL MOTORS CORP.

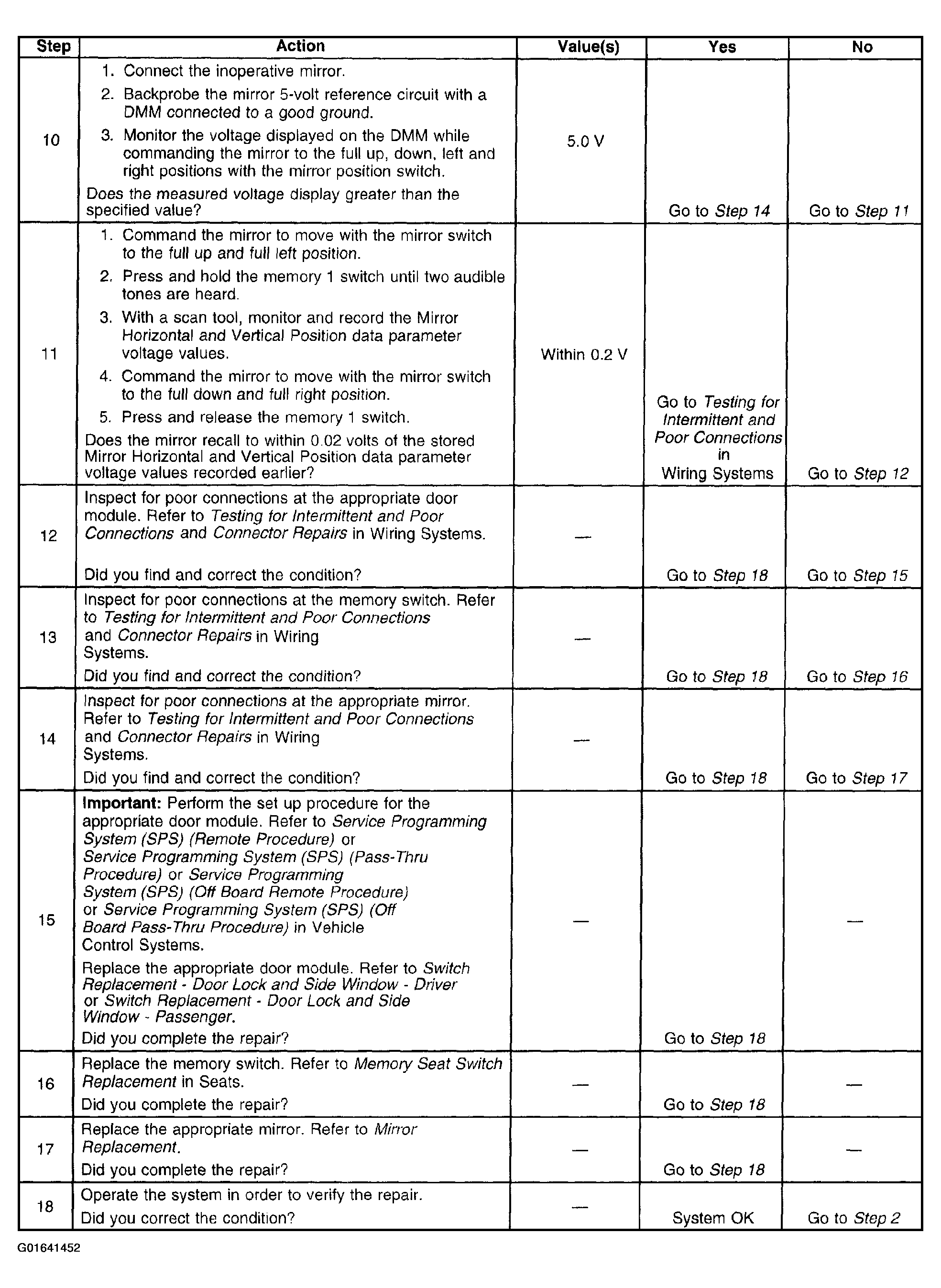

Fig 2: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 10-18)

Courtesy of GENERAL MOTORS CORP.
