Power Door Locks Inoperative - End Gate/Lift Gate

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

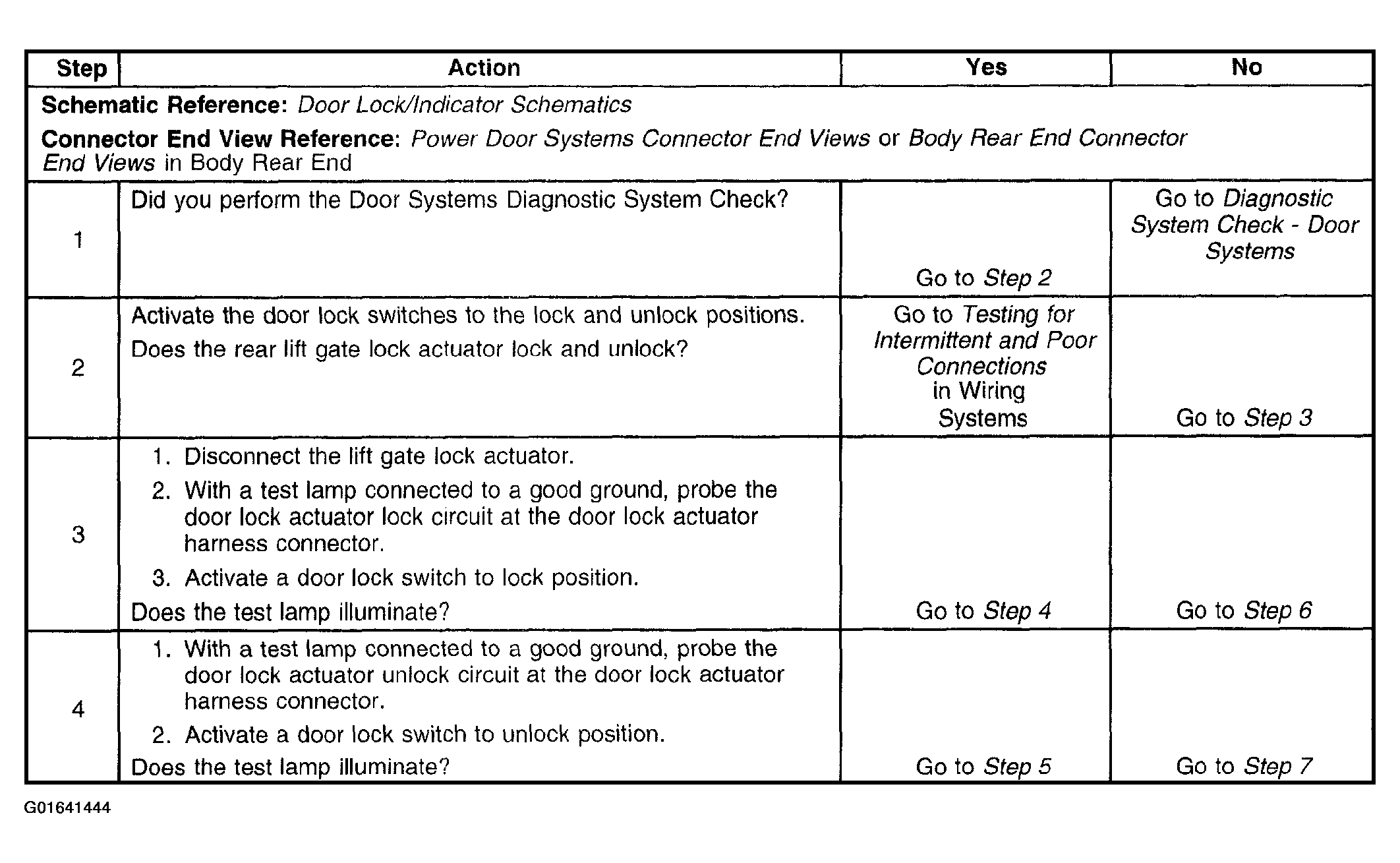

Fig 1: End Gate/Lift Gate Power Door Locks Inoperative Symptom Tests Procedure (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

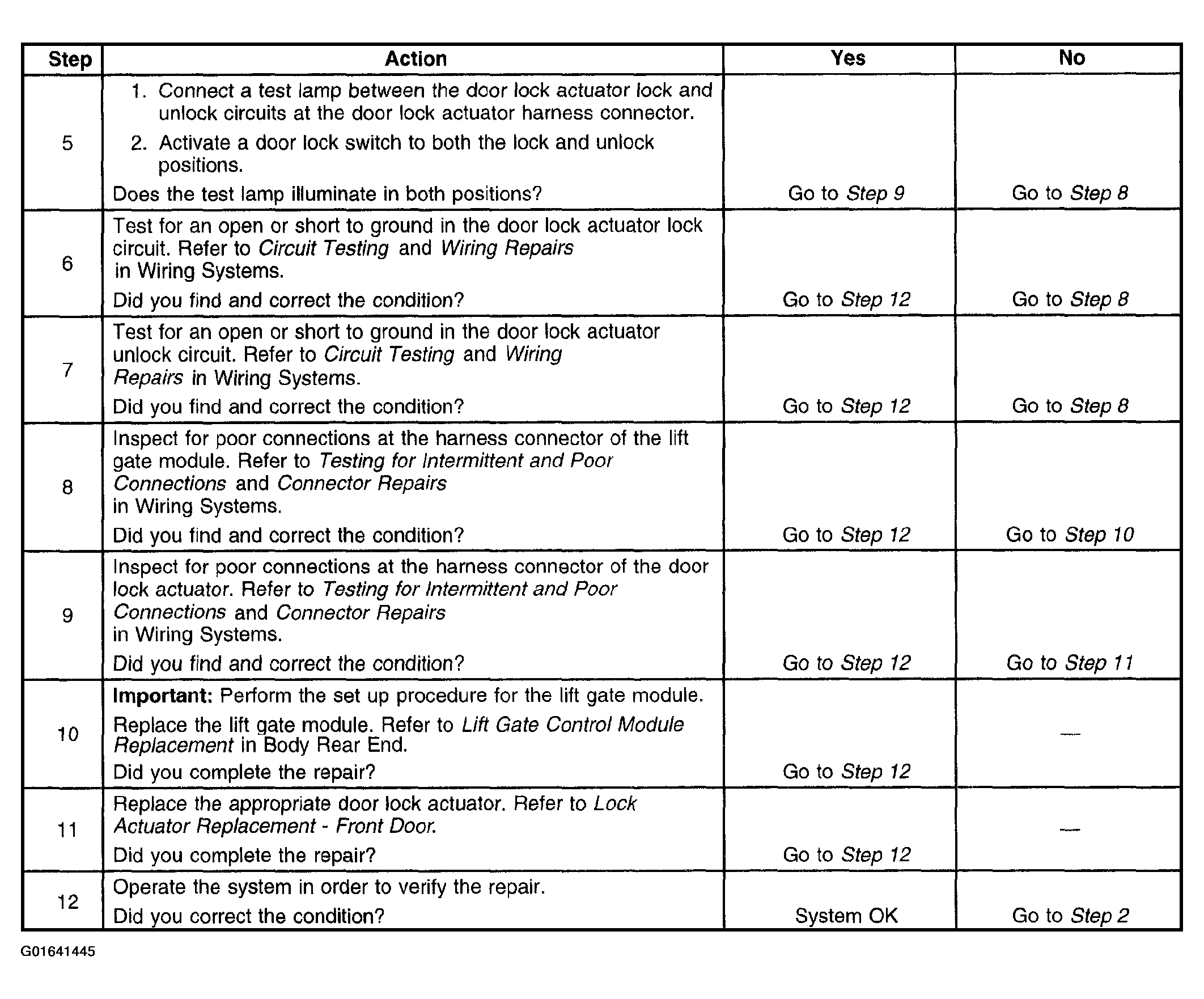

Fig 2: End Gate/Lift Gate Power Door Locks Inoperative Symptom Tests Procedure (Steps 5-12)

Courtesy of GENERAL MOTORS CORP.
