Power Door Locks Inoperative (Front Door(s))

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

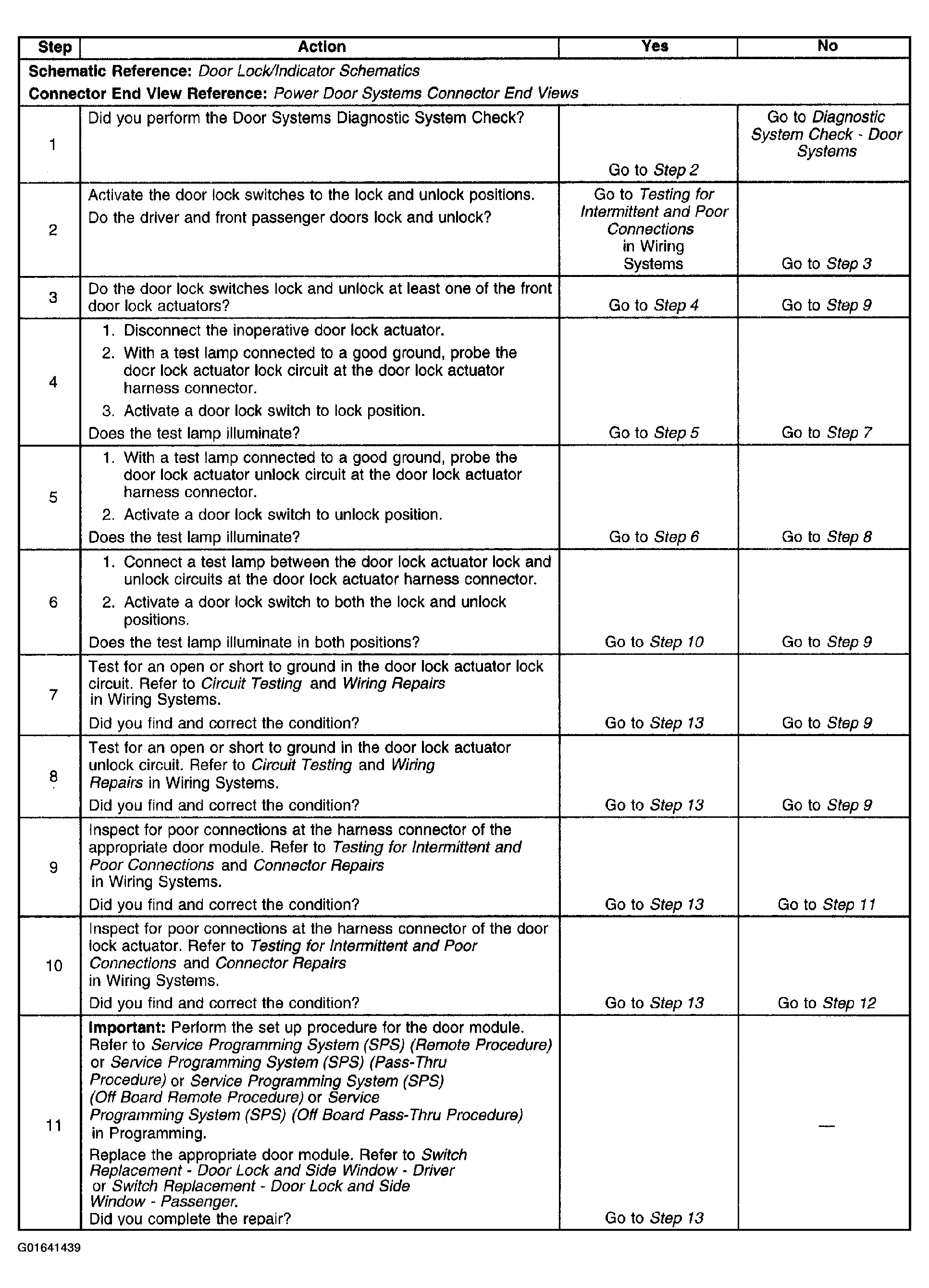

Fig 1: Front Power Door Locks Inoperative Symptom Tests Procedure (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

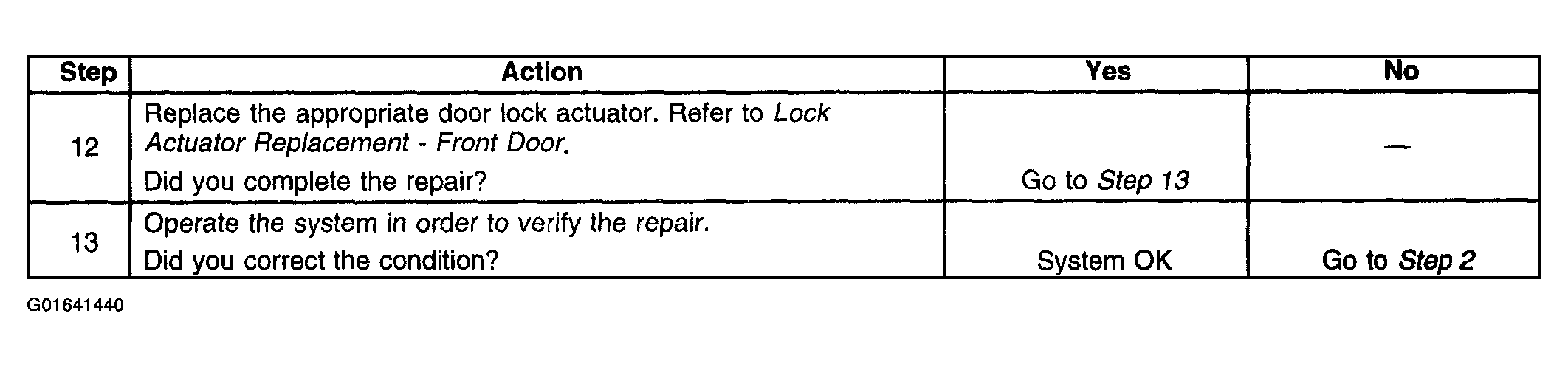

Fig 2: Front Power Door Locks Inoperative Symptom Tests Procedure (Steps 12-13)

Courtesy of GENERAL MOTORS CORP.
