Test Description
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

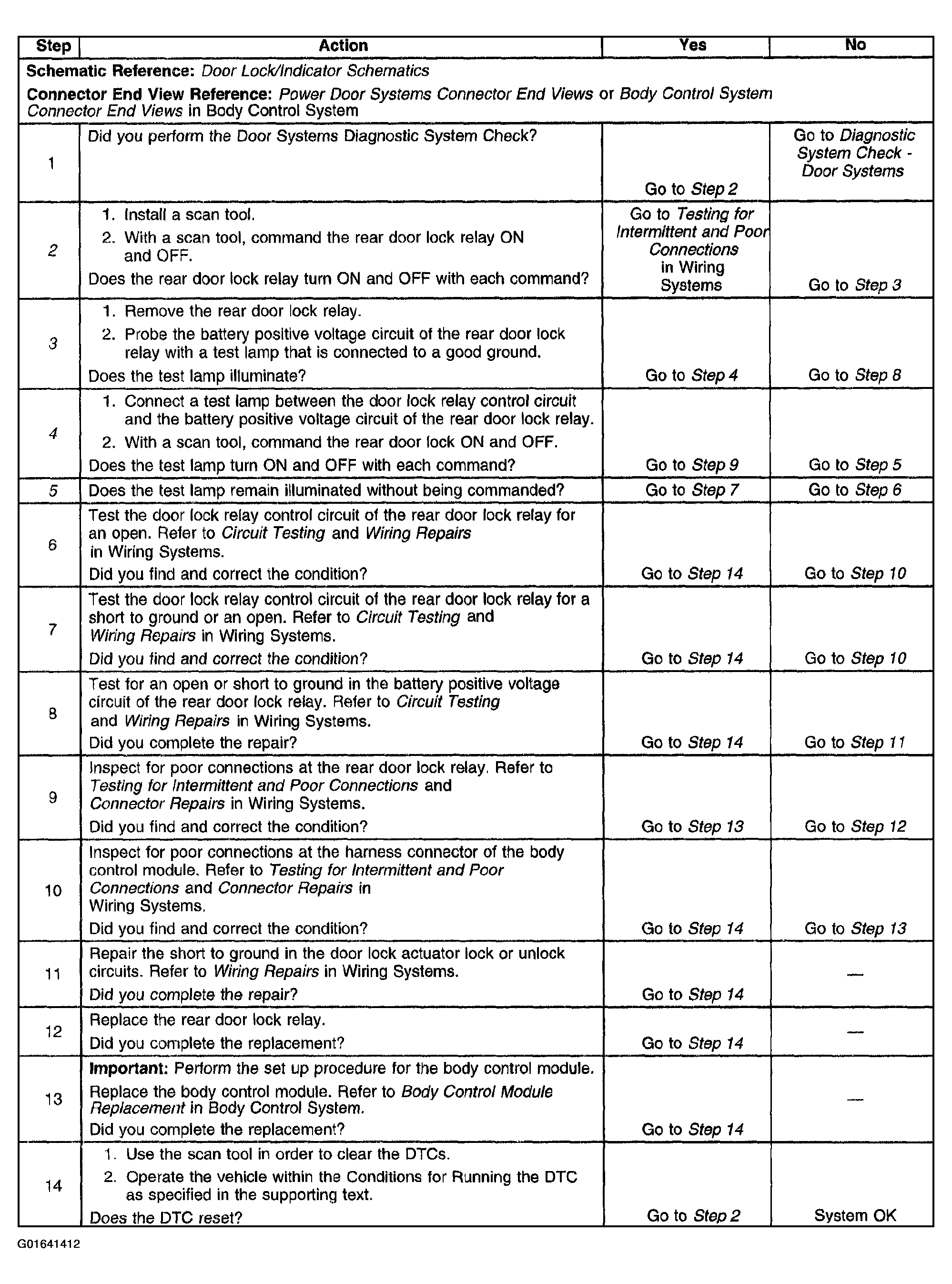

The number(s) below refer to the step number(s) on the diagnostic table.
- 2. Listen for an audible click when the rear door lock relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
- 3. Tests for voltage at the coil side of the rear door lock relay. The LOCKS fuse supplies power to the coil side of the rear door lock relay.
- 4. Verifies that the body control module is providing ground to the rear door lock relay.
- 5. Tests if ground is constantly being applied to the rear door lock relay.
