DTC B1721: Mirror Left and Right Control Switch Circuit: B1721

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

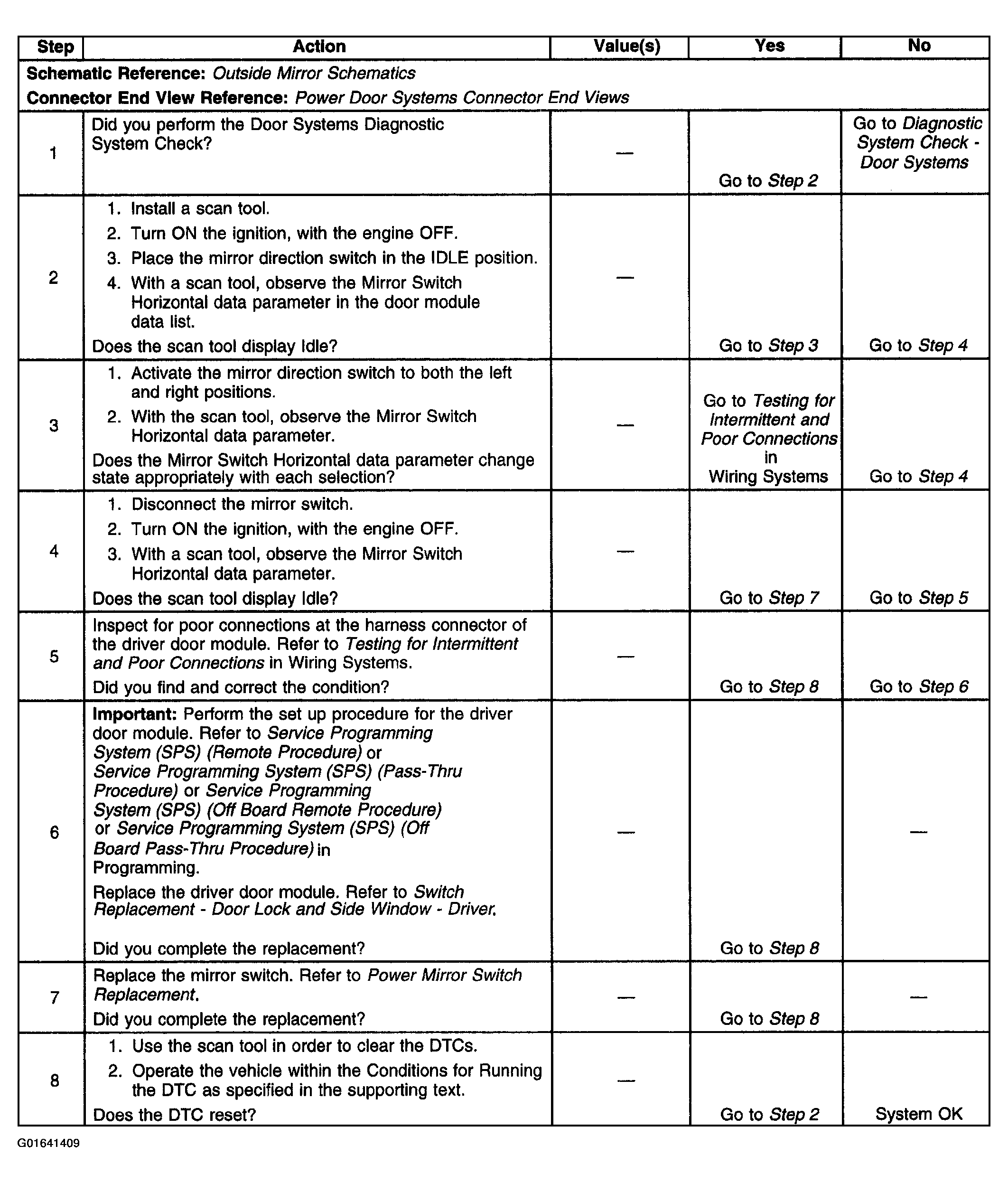

Fig 1: DTC B1721 Procedure
G01641409Courtesy of GENERAL MOTORS CORP.
